Canvas Class Reference

A UI container for managing and rendering UI components. More...

#include <Canvas.h>

Inheritance diagram for Canvas:

Public Member Functions
	Canvas (const Canvas &)=delete
Canvas &	operator= (const Canvas &)=delete
void	AddComponent (UIComponent *component)
	Adds a UI component to the canvas.
void	RemoveComponent (UIComponent *component)
	Removes a UI component from the canvas.
void	SetEnabled (bool e)
	Sets the canvas to be enabled or disabled.
bool	IsEnabled () const
	Returns whether the canvas is enabled or not.

Private Member Functions
void	OnComponentLayerChanged (UIComponent *component, int oldLayer, int newLayer)
void	Update () override
	Updates the canvas and its child components. Called automatically by the engine each frame when registered.
void	Draw2D () override
	Draws the canvas and its child components. Called automatically by the engine each frame when registered.
void	MousePress (AZUL_MOUSE m) override
	Handles pressed AZUL mouse input. Called automatically by the engine when mouse input is detected.
void	MouseHeld (AZUL_MOUSE m) override
	Handles held AZUL mouse input. Called automatically by the engine when mouse input is detected.
void	MouseRelease (AZUL_MOUSE m) override
	Handles released AZUL mouse input. Called automatically by the engine when mouse input is detected.
void	HandleMouseInput ()
	Handles AZUL mouse press/hover input.
void	HandleHeldMouseInput ()
	Handles AZUL mouse scroll input.
void	HandleScroll ()
	Handles AZUL mouse scroll input.
void	HandleMouseReleaseInput ()
	Handles released AZUL mouse input.
void	HandleHover ()
	Handles AZUL mouse hover input.

Private Attributes
std::vector< UIComponent * >	components
	List of UI components in this canvas.
std::map< int, std::vector< UIComponent * > >	layerMap
std::map< UIComponent *, int >	componentLayerLookup
bool	enabled

Friends
class	UIAttorney

Additional Inherited Members
Protected Member Functions inherited from Drawable
	Drawable (const Drawable &)=delete
Drawable &	operator= (const Drawable &)=delete
void	SubmitDrawRegistration ()
	Submits the draw registration for the GameObject.
void	SubmitDrawDeregistration ()
	Submits the draw deregistration for the GameObject.
Protected Member Functions inherited from Inputable
	Inputable (const Inputable &)=delete
Inputable &	operator= (const Inputable &)=delete
void	SubmitKeyRegistration (AZUL_KEY k, EventType e)
	Submits the key registration for the GameObject.
void	SubmitKeyDeregistration (AZUL_KEY k, EventType e)
	Submits the key deregistration for the GameObject.
void	SubmitMouseKeyRegistration (AZUL_MOUSE m, EventType e)
	Submits the mouse key registration for the GameObject.
void	SubmitMouseKeyDeregistration (AZUL_MOUSE m, EventType e)
	Submits the mouse key deregistration for the GameObject.
Protected Member Functions inherited from Updatable
	Updatable (const Updatable &)=delete
Updatable &	operator= (const Updatable &)=delete
void	SubmitUpdateRegistration ()
	Submits the update registration for the GameObject.
void	SubmitUpdateDeregistration ()
	Submits the update deregistration for the GameObject.

Detailed Description

A UI container for managing and rendering UI components.

The Canvas class acts as a root container for UI elements such as buttons, sliders, dropdowns, and more. It handles input, drawing, and updating of its child components, and can be added to a scene as a 2D overlay.

Typical usage:

Canvas* pCanvas = new Canvas();
pCanvas->AddComponent(new Button("Button"));
// Add more UI components as needed

See also

Button, Slider, Dropdown, Textbox, ScrollList

Member Function Documentation

AddComponent()

void Canvas::AddComponent

(

UIComponent *

component

)

Adds a UI component to the canvas.

Parameters

component

Pointer to the UIComponent to add.

Here is the call graph for this function:

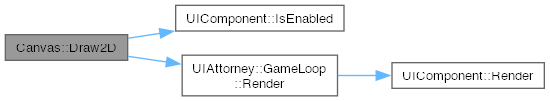

Draw2D()

void Canvas::Draw2D ( )

overrideprivatevirtual

Draws the canvas and its child components. Called automatically by the engine each frame when registered.

Reimplemented from Drawable.

Here is the call graph for this function:

IsEnabled()

bool Canvas::IsEnabled

(

)

const

Returns whether the canvas is enabled or not.

Returns

True if enabled, false otherwise.

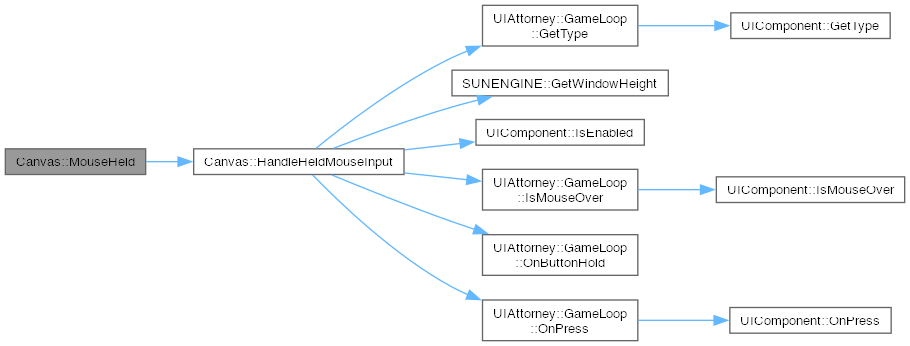

MouseHeld()

void Canvas::MouseHeld ( AZUL_MOUSE m )

overrideprivatevirtual

Handles held AZUL mouse input. Called automatically by the engine when mouse input is detected.

Reimplemented from Inputable.

Here is the call graph for this function:

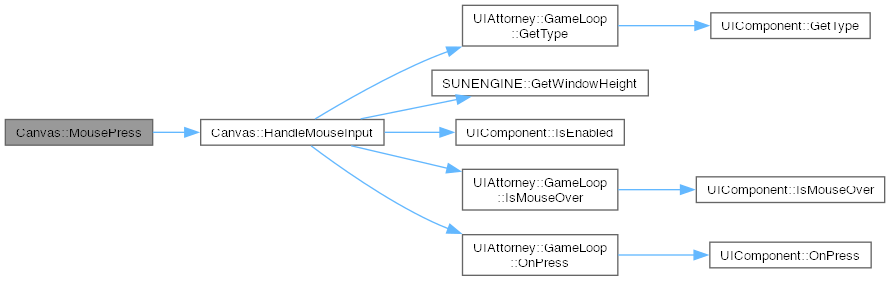

MousePress()

void Canvas::MousePress ( AZUL_MOUSE m )

overrideprivatevirtual

Handles pressed AZUL mouse input. Called automatically by the engine when mouse input is detected.

Reimplemented from Inputable.

Here is the call graph for this function:

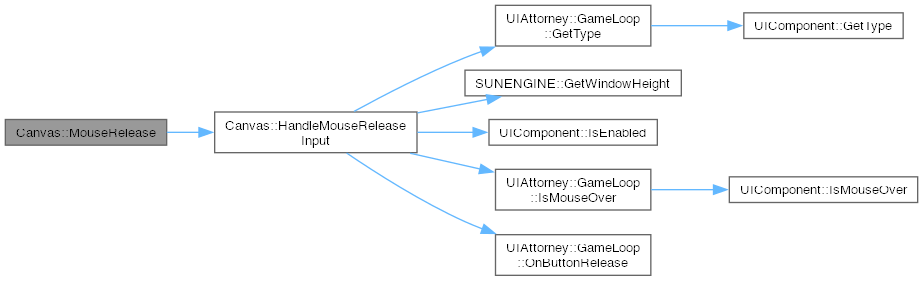

MouseRelease()

void Canvas::MouseRelease ( AZUL_MOUSE m )

overrideprivatevirtual

Handles released AZUL mouse input. Called automatically by the engine when mouse input is detected.

Reimplemented from Inputable.

Here is the call graph for this function:

RemoveComponent()

void Canvas::RemoveComponent

(

UIComponent *

component

)

Removes a UI component from the canvas.

Parameters

component

Pointer to the UIComponent to remove.

Here is the call graph for this function:

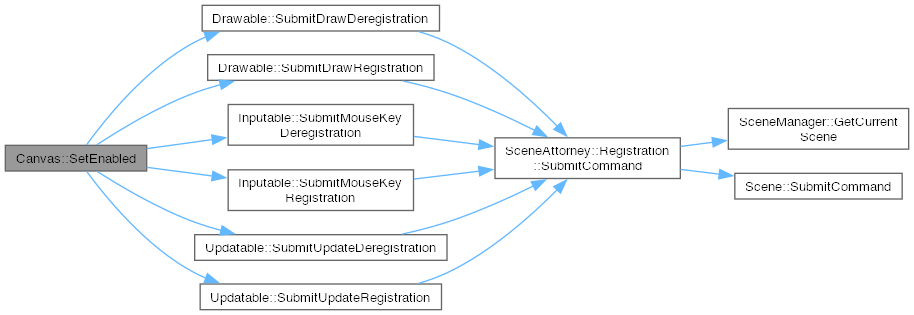

SetEnabled()

void Canvas::SetEnabled

(

bool

e

)

Sets the canvas to be enabled or disabled.

Parameters

enabled

True to enable the canvas, false to disable it.

Here is the call graph for this function:

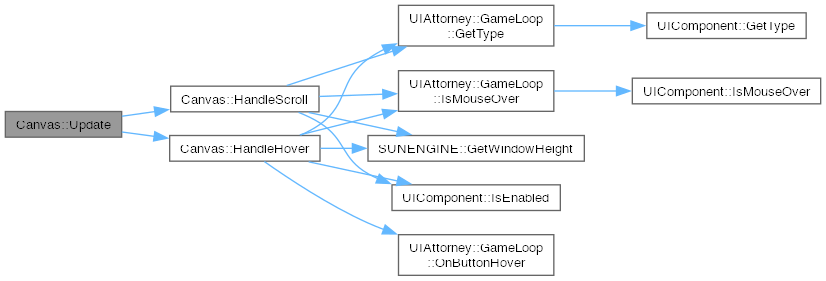

Update()

void Canvas::Update ( )

overrideprivatevirtual

Updates the canvas and its child components. Called automatically by the engine each frame when registered.

Reimplemented from Updatable.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• Canvas.h
• Canvas.cpp
