Dropdown Class Reference

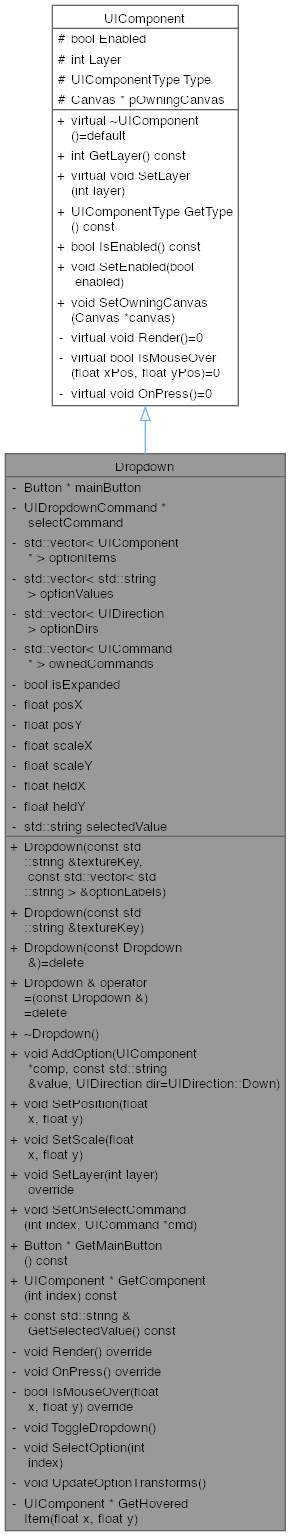

Inheritance diagram for Dropdown:

Public Member Functions
	Dropdown (const std::string &textureKey, const std::vector< std::string > &optionLabels)
	Dropdown (const std::string &textureKey)
	Dropdown (const Dropdown &)=delete
Dropdown &	operator= (const Dropdown &)=delete
void	AddOption (UIComponent *comp, const std::string &value, UIDirection dir=UIDirection::Down)
	Adds an option to the dropdown.
void	SetPosition (float x, float y)
	Sets the position of the dropdown.
void	SetScale (float x, float y)
	Sets the scale of the dropdown.
void	SetLayer (int layer) override
	Sets the layer of the dropdown for rendering.
void	SetOnSelectCommand (int index, UICommand *cmd)
	Sets the command to be executed when an option is selected.
Button *	GetMainButton () const
	Gets the main button of the dropdown.
UIComponent *	GetComponent (int index) const
	Gets the component at the specified index in the Dropdown.
const std::string &	GetSelectedValue () const
	Gets the currently selected value.
Public Member Functions inherited from UIComponent
virtual	~UIComponent ()=default
	Virtual destructor.
int	GetLayer () const
	Gets the rendering layer of the component.
UIComponentType	GetType () const
	Gets the type of the UI component.
bool	IsEnabled () const
	Returns whether the component is enabled or not.
void	SetEnabled (bool enabled)
	Sets the enabled state of the component.
void	SetOwningCanvas (Canvas *canvas)
	Gets the owning canvas of the component.

Private Member Functions
void	Render () override
	Renders the dropdown and its options.
void	OnPress () override
	Handles the press event on the dropdown.
bool	IsMouseOver (float x, float y) override
	Checks if the mouse is over the dropdown or its options.
void	ToggleDropdown ()
	Toggles the expanded/collapsed state of the dropdown.
void	SelectOption (int index)
	Selects the option at the given index.
void	UpdateOptionTransforms ()
	Updates the transforms (position/scale) of the dropdown options.
UIComponent *	GetHoveredItem (float x, float y)
	Gets the option item currently hovered by the mouse.

Private Attributes
Button *	mainButton
	The main button that toggles the dropdown.
UIDropdownCommand *	selectCommand
	Command for handling selection/toggle.
std::vector< UIComponent * >	optionItems
	List of option UI components.
std::vector< std::string >	optionValues
	Values associated with each option.
std::vector< UIDirection >	optionDirs
	Directions for positioning each option.
std::vector< UICommand * >	ownedCommands
	Commands owned and managed by the dropdown.
bool	isExpanded
	Whether the dropdown is currently expanded.
float	posX
	X position of the dropdown.
float	posY
	Y position of the dropdown.
float	scaleX
	X scale factor.
float	scaleY
	Y scale factor.
float	heldX
	Last held/clicked X coordinate.
float	heldY
	Last held/clicked Y coordinate.
std::string	selectedValue
	The currently selected value.

Friends
class	UIDropdownCommand

Additional Inherited Members
Protected Attributes inherited from UIComponent
bool	Enabled = true
	Indicates if the component is enabled or not.
int	Layer = 0
	Rendering layer in.
UIComponentType	Type = UIComponentType::None
	Type of the UI component.
Canvas *	pOwningCanvas = nullptr
	Pointer to the owning canvas, if any.

Member Function Documentation

AddOption()

void Dropdown::AddOption	(	UIComponent *	comp,
		const std::string &	value,
		UIDirection	dir = UIDirection::Down )

Adds an option to the dropdown.

Parameters

comp	The UIComponent to add (Button or Dropdown).
value	The value associated with this option.
dir	The direction in which this option will be positioned relative to the main button.

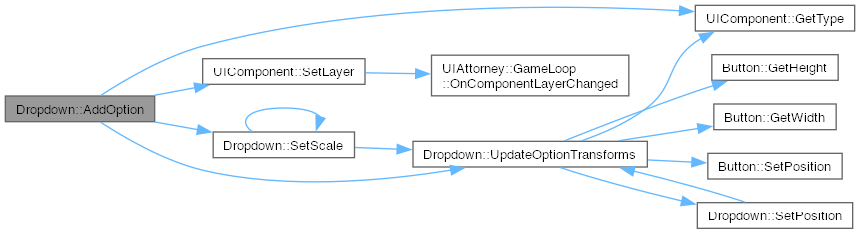

Here is the call graph for this function:

GetComponent()

UIComponent * Dropdown::GetComponent

(

int

index

)

const

Gets the component at the specified index in the Dropdown.

Returns

Pointer to the UI component.

GetHoveredItem()

UIComponent * Dropdown::GetHoveredItem ( float x, float y )

private

Gets the option item currently hovered by the mouse.

Parameters

x	The x-coordinate of the mouse.
y	The y-coordinate of the mouse.

Returns

Pointer to the hovered UIComponent, or nullptr if none.

Here is the call graph for this function:

Here is the caller graph for this function:

GetMainButton()

Button * Dropdown::GetMainButton

(

)

const

Gets the main button of the dropdown.

Returns

Pointer to the main button.

GetSelectedValue()

const std::string & Dropdown::GetSelectedValue

(

)

const

Gets the currently selected value.

Returns

The string value.

IsMouseOver()

bool Dropdown::IsMouseOver ( float x, float y )

overrideprivatevirtual

Checks if the mouse is over the dropdown or its options.

Parameters

x	The x-coordinate of the mouse.
y	The y-coordinate of the mouse.

Returns

True if the mouse is over the dropdown or its options, false otherwise.

Implements UIComponent.

Here is the call graph for this function:

OnPress()

void Dropdown::OnPress ( )

overrideprivatevirtual

Handles the press event on the dropdown.

Implements UIComponent.

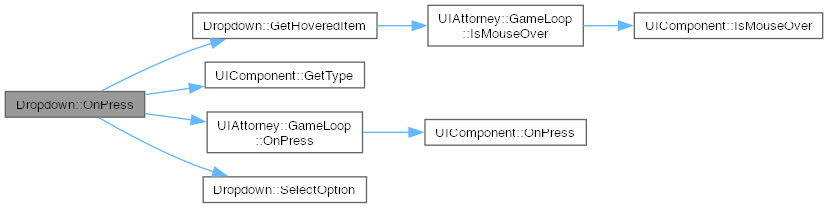

Here is the call graph for this function:

Render()

void Dropdown::Render ( )

overrideprivatevirtual

Renders the dropdown and its options.

Implements UIComponent.

Here is the call graph for this function:

SelectOption()

void Dropdown::SelectOption ( int index )

private

Selects the option at the given index.

Parameters

index

The index of the option to select.

Here is the caller graph for this function:

SetLayer()

void Dropdown::SetLayer ( int layer )

overridevirtual

Sets the layer of the dropdown for rendering.

Parameters

layer

The layer to set the dropdown to.

Reimplemented from UIComponent.

SetOnSelectCommand()

void Dropdown::SetOnSelectCommand	(	int	index,
		UICommand *	cmd )

Sets the command to be executed when an option is selected.

Parameters

index	The index of the option.
cmd	The command to execute on selection.

Here is the call graph for this function:

SetPosition()

void Dropdown::SetPosition	(	float	x,
		float	y )

Sets the position of the dropdown.

Parameters

x	The x-coordinate of the dropdown's position.
y	The y-coordinate of the dropdown's position.

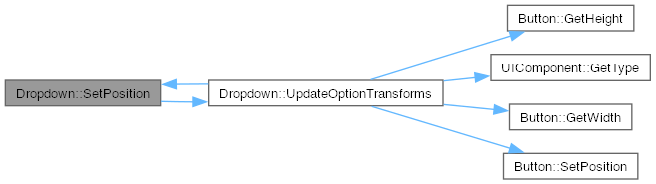

Here is the call graph for this function:

Here is the caller graph for this function:

SetScale()

void Dropdown::SetScale	(	float	x,
		float	y )

Sets the scale of the dropdown.

Parameters

x	The x-scale factor.
y	The y-scale factor.

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• Dropdown.h
• Dropdown.cpp
