Button Class Reference

A clickable UI button component. More...

#include <Button.h>

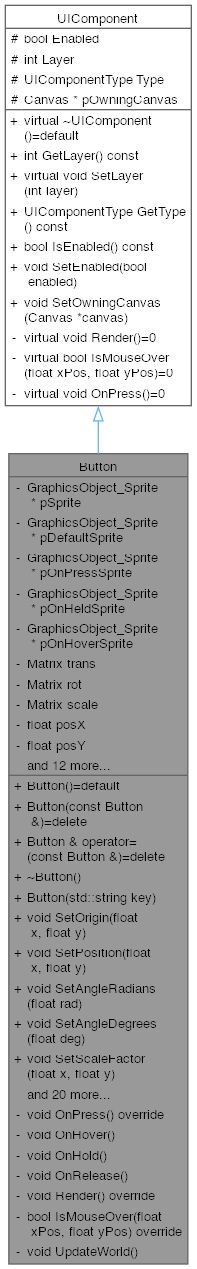

Inheritance diagram for Button:

Public Member Functions
	Button ()=default
	Default constructor. Initializes the button with default values.
	Button (const Button &)=delete
Button &	operator= (const Button &)=delete
	Button (std::string key)
	Constructor that initializes the button with a texture key.
void	SetOrigin (float x, float y)
	Sets the origin of the button.
void	SetPosition (float x, float y)
	Sets the position of the button.
void	SetAngleRadians (float rad)
	Sets the angle of the button in radians.
void	SetAngleDegrees (float deg)
	Sets the angle of the button in degrees.
void	SetScaleFactor (float x, float y)
	Sets the scale of the button.
void	SetScalePixel (float x, float y)
	Sets the scale of the button in pixels.
float	GetWidth () const
	Gets the width of the button.
float	GetHeight () const
	Gets the height of the button.
float	GetAngle () const
	Gets the angle of the button in radians.
float	GetScaleX () const
	Gets the x-scale factor of the button.
float	GetScaleY () const
	Gets the y-scale factor of the button.
float	GetPosX () const
	Gets the x-coordinate of the button's position.
float	GetPosY () const
	Gets the y-coordinate of the button's position.
void	SetOnPressCommand (UICommand *cmd)
	Sets the command to be executed when the button is pressed.
void	SetOnHoverCommand (UICommand *cmd)
	Sets the command to be executed when the button is hovered.
void	SetOnHoldCommand (UICommand *cmd)
	Sets the command to be executed when the button is held.
void	SetOnReleaseCommand (UICommand *cmd)
	Sets the command to be executed when the button is released.
void	SetDefaultSprite (const std::string &key)
	Sets the default sprite for the button.
void	SetOnPressSprite (const std::string &key)
	Sets the sprite for the button when pressed.
void	SetOnHeldSprite (const std::string &key)
	Sets the sprite for the button when held.
void	SetOnHoverSprite (const std::string &key)
	Sets the sprite for the button when hovered.
void	SetText (const std::string &text, std::string fontKey)
	Sets the text label for the button.
std::string	GetText () const
	Gets the text label of the button.
void	SetTextScale (float x, float y)
	Sets the text scale for the button.
void	SetTextScalePixel (float x, float y)
	Sets the text scale in pixels for the button.
Public Member Functions inherited from UIComponent
virtual	~UIComponent ()=default
	Virtual destructor.
int	GetLayer () const
	Gets the rendering layer of the component.
virtual void	SetLayer (int layer)
	Sets the rendering layer of the component.
UIComponentType	GetType () const
	Gets the type of the UI component.
bool	IsEnabled () const
	Returns whether the component is enabled or not.
void	SetEnabled (bool enabled)
	Sets the enabled state of the component.
void	SetOwningCanvas (Canvas *canvas)
	Gets the owning canvas of the component.

Private Member Functions
void	OnPress () override
	Called when the button is pressed.
void	OnHover ()
	Called when the button is hovered.
void	OnHold ()
	Called when the button is held.
void	OnRelease ()
	Called when the button is released.
void	Render () override
	Updates the world matrix of the button.
bool	IsMouseOver (float xPos, float yPos) override
	Checks if the mouse is over the button.
void	UpdateWorld ()
	Updates the world matrix of the button.

Private Attributes
GraphicsObject_Sprite *	pSprite
	The current sprite for the button.
GraphicsObject_Sprite *	pDefaultSprite
	The default sprite.
GraphicsObject_Sprite *	pOnPressSprite
	Sprite when pressed.
GraphicsObject_Sprite *	pOnHeldSprite
	Sprite when held.
GraphicsObject_Sprite *	pOnHoverSprite
	Sprite when hovered.
Matrix	trans
	Translation matrix.
Matrix	rot
	Rotation matrix.
Matrix	scale
	Scale matrix.
float	posX
	X position of the button.
float	posY
	Y position of the button.
float	angle
	Angle in radians.
float	scaleX
	X scale factor.
float	scaleY
	Y scale factor.
UICommand *	pOnPressCommand
	Command for press event.
UICommand *	pOnHoverCommand
	Command for hover event.
UICommand *	pOnHoldCommand
	Command for hold event.
UICommand *	pOnReleaseCommand
	Command for release event.
SpriteString *	pTextLabel
	Text label for the button.
bool	textScaleSet
	Whether text scale is set manually.
float	textScaleX
	X scale for text.
float	textScaleY
	Y scale for text.
std::string	font
	Font key for the text.

Friends
class	UIAttorney

Additional Inherited Members
Protected Attributes inherited from UIComponent
bool	Enabled = true
	Indicates if the component is enabled or not.
int	Layer = 0
	Rendering layer in.
UIComponentType	Type = UIComponentType::None
	Type of the UI component.
Canvas *	pOwningCanvas = nullptr
	Pointer to the owning canvas, if any.

Detailed Description

A clickable UI button component.

The Button class represents a UI button that can display text, respond to mouse events, and execute commands when pressed, hovered, held, or released. It supports custom sprites for different button states and can be added to a Canvas or other UI containers.

Example usage:

Button* btn = new Button("ButtonTextureKey");
btn->SetText("Click Me", "FontKey");
btn->SetOnPressCommand(new MyButtonCommand());
canvas->AddComponent(btn);

See also

Canvas, UICommand, SpriteString

Constructor & Destructor Documentation

Button()

Button::Button

(

std::string

key

)

Constructor that initializes the button with a texture key.

Parameters

key	The texture key for the button's default sprite.

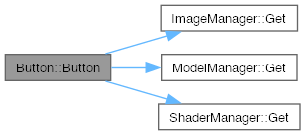

Here is the call graph for this function:

Member Function Documentation

GetAngle()

float Button::GetAngle

(

)

const

Gets the angle of the button in radians.

Returns

The angle in radians.

GetHeight()

float Button::GetHeight

(

)

const

Gets the height of the button.

Returns

The height of the button.

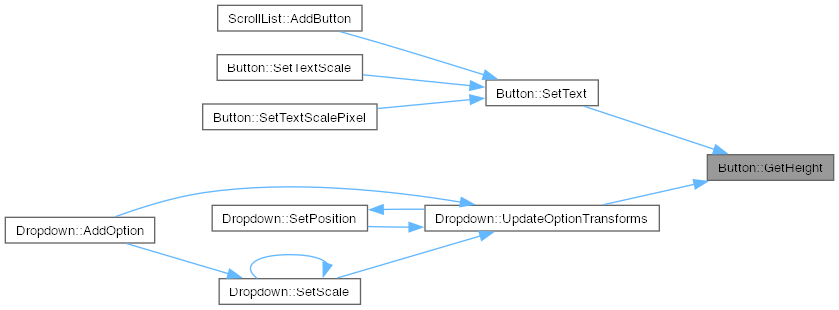

Here is the caller graph for this function:

GetPosX()

float Button::GetPosX

(

)

const

Gets the x-coordinate of the button's position.

Returns

The x-coordinate of the button's position.

GetPosY()

float Button::GetPosY

(

)

const

Gets the y-coordinate of the button's position.

Returns

The y-coordinate of the button's position.

GetScaleX()

float Button::GetScaleX

(

)

const

Gets the x-scale factor of the button.

Returns

The x-scale factor.

GetScaleY()

float Button::GetScaleY

(

)

const

Gets the y-scale factor of the button.

Returns

The y-scale factor.

GetText()

std::string Button::GetText

(

)

const

Gets the text label of the button.

Returns

The text displayed on the button.

GetWidth()

float Button::GetWidth

(

)

const

Gets the width of the button.

Returns

The width of the button.

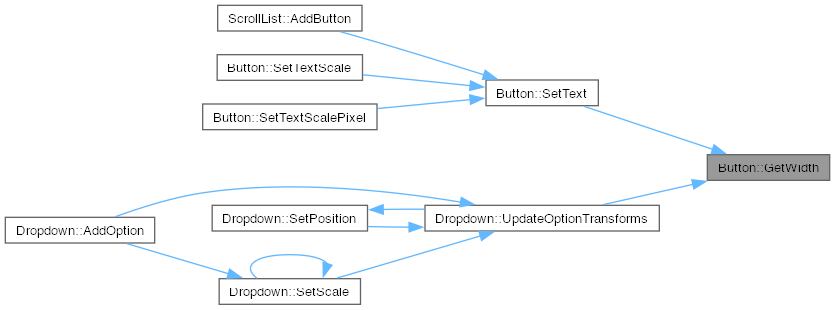

Here is the caller graph for this function:

IsMouseOver()

bool Button::IsMouseOver ( float xPos, float yPos )

overrideprivatevirtual

Checks if the mouse is over the button.

Parameters

xPos	The x-coordinate of the mouse position.
yPos	The y-coordinate of the mouse position.

Returns

True if the mouse is over the button, false otherwise.

Implements UIComponent.

OnPress()

void Button::OnPress ( )

overrideprivatevirtual

Called when the button is pressed.

Implements UIComponent.

Render()

void Button::Render ( )

overrideprivatevirtual

Updates the world matrix of the button.

Implements UIComponent.

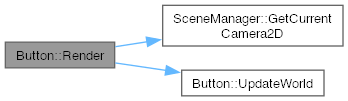

Here is the call graph for this function:

SetAngleDegrees()

void Button::SetAngleDegrees

(

float

deg

)

Sets the angle of the button in degrees.

Parameters

deg	The angle in degrees.

SetAngleRadians()

void Button::SetAngleRadians

(

float

rad

)

Sets the angle of the button in radians.

Parameters

rad	The angle in radians.

SetDefaultSprite()

void Button::SetDefaultSprite

(

const std::string &

key

)

Sets the default sprite for the button.

Parameters

key	The texture key for the default sprite.

Here is the call graph for this function:

SetOnHeldSprite()

void Button::SetOnHeldSprite

(

const std::string &

key

)

Sets the sprite for the button when held.

Parameters

key	The texture key for the held sprite.

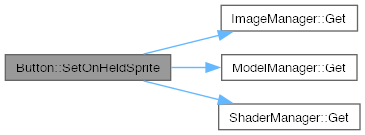

Here is the call graph for this function:

SetOnHoldCommand()

void Button::SetOnHoldCommand

(

UICommand *

cmd

)

Sets the command to be executed when the button is held.

Parameters

cmd	The command to be executed.

SetOnHoverCommand()

void Button::SetOnHoverCommand

(

UICommand *

cmd

)

Sets the command to be executed when the button is hovered.

Parameters

cmd	The command to be executed.

SetOnHoverSprite()

void Button::SetOnHoverSprite

(

const std::string &

key

)

Sets the sprite for the button when hovered.

Parameters

key	The texture key for the hovered sprite.

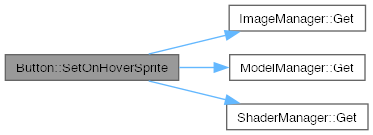

Here is the call graph for this function:

SetOnPressCommand()

void Button::SetOnPressCommand

(

UICommand *

cmd

)

Sets the command to be executed when the button is pressed.

Parameters

cmd	The command to be executed.

Here is the caller graph for this function:

SetOnPressSprite()

void Button::SetOnPressSprite

(

const std::string &

key

)

Sets the sprite for the button when pressed.

Parameters

key	The texture key for the pressed sprite.

Here is the call graph for this function:

SetOnReleaseCommand()

void Button::SetOnReleaseCommand

(

UICommand *

cmd

)

Sets the command to be executed when the button is released.

Parameters

cmd	The command to be executed.

SetOrigin()

void Button::SetOrigin	(	float	x,
		float	y )

Sets the origin of the button.

Parameters

x	The x-coordinate of the origin (0.0 to 1.0).
y	The y-coordinate of the origin (0.0 to 1.0).

SetPosition()

void Button::SetPosition	(	float	x,
		float	y )

Sets the position of the button.

Parameters

x	The x-coordinate of the button's position.
y	The y-coordinate of the button's position.

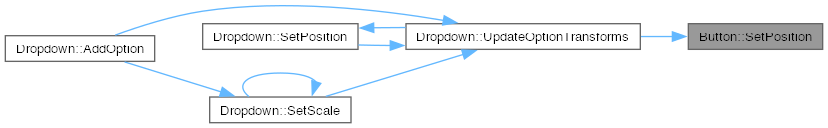

Here is the caller graph for this function:

SetScaleFactor()

void Button::SetScaleFactor	(	float	x,
		float	y )

Sets the scale of the button.

Parameters

x	The x-scale factor.
y	The y-scale factor.

SetScalePixel()

void Button::SetScalePixel	(	float	x,
		float	y )

Sets the scale of the button in pixels.

Parameters

x	The width in pixels.
y	The height in pixels.

Here is the caller graph for this function:

SetText()

void Button::SetText	(	const std::string &	text,
		std::string	fontKey )

Sets the text label for the button.

Parameters

text	The text to display on the button.
fontKey	The texture key for the font to use.

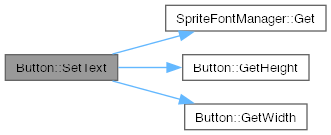

Here is the call graph for this function:

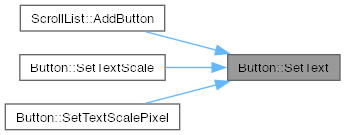

Here is the caller graph for this function:

SetTextScale()

void Button::SetTextScale	(	float	x,
		float	y )

Sets the text scale for the button.

Parameters

x	The x-scale factor for the text.
y	The y-scale factor for the text.

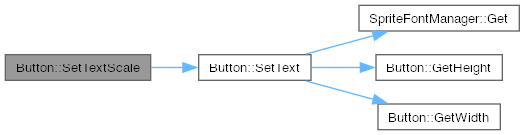

Here is the call graph for this function:

SetTextScalePixel()

void Button::SetTextScalePixel	(	float	x,
		float	y )

Sets the text scale in pixels for the button.

Parameters

x	The width in pixels for the text.
y	The height in pixels for the text.

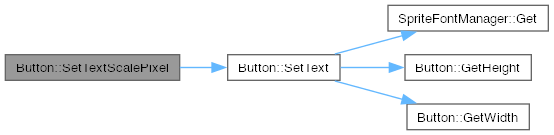

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• Button.h
• Button.cpp
