UICommand Class Reference

Abstract base class for UI-related command objects. More...

#include <UICommand.h>

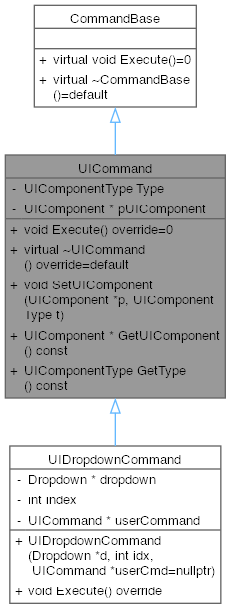

Inheritance diagram for UICommand:

Public Member Functions
void	Execute () override=0
	Pure virtual method to execute the command. Must be implemented by derived classes.
virtual	~UICommand () override=default
	Virtual destructor.
void	SetUIComponent (UIComponent *p, UIComponentType t)
	Associates this command with a UIComponent and its type.
UIComponent *	GetUIComponent () const
	Gets the associated UIComponent.
UIComponentType	GetType () const
	Gets the type of the associated UIComponent.
Public Member Functions inherited from CommandBase
virtual	~CommandBase ()=default
	Destructor for CommandBase.

Private Attributes
UIComponentType	Type = UIComponentType::None
	Type of the associated UIComponent.
UIComponent *	pUIComponent = nullptr
	Pointer to the associated UIComponent.

Friends
class	UIAttorney::GameLoop

Detailed Description

Abstract base class for UI-related command objects.

The UICommand class defines the interface for commands that can be executed by UI components (such as Button, Slider, Dropdown, etc.). It inherits from CommandBase and provides a mechanism to associate the command with a specific UIComponent and its type. Derived classes must implement the Execute() method to define the command's behavior.

Example usage:

class MyButtonCommand : public UICommand {
public:
    void Execute() override {
        // Custom action when button is pressed
    }
};
Button* btn = new Button("ButtonTexture");
btn->SetOnPressCommand(new MyButtonCommand());

See also

CommandBase, UIComponent, Button, Slider, Dropdown

Member Function Documentation

Execute()

void UICommand::Execute ( )

overridepure virtual

Pure virtual method to execute the command. Must be implemented by derived classes.

Implements CommandBase.

Implemented in UIDropdownCommand.

GetType()

UIComponentType UICommand::GetType

(

)

const

Gets the type of the associated UIComponent.

Returns

The UIComponentType.

GetUIComponent()

UIComponent * UICommand::GetUIComponent

(

)

const

Gets the associated UIComponent.

Returns

Pointer to the UIComponent, or nullptr if not set.

SetUIComponent()

void UICommand::SetUIComponent	(	UIComponent *	p,
		UIComponentType	t )

Associates this command with a UIComponent and its type.

Parameters

p	Pointer to the UIComponent.
t	The UIComponentType.

---

The documentation for this class was generated from the following files:

• UICommand.h
• UICommand.cpp
