UIComponent Class Reference

Abstract base class for all UI components. More...

#include <UIComponent.h>

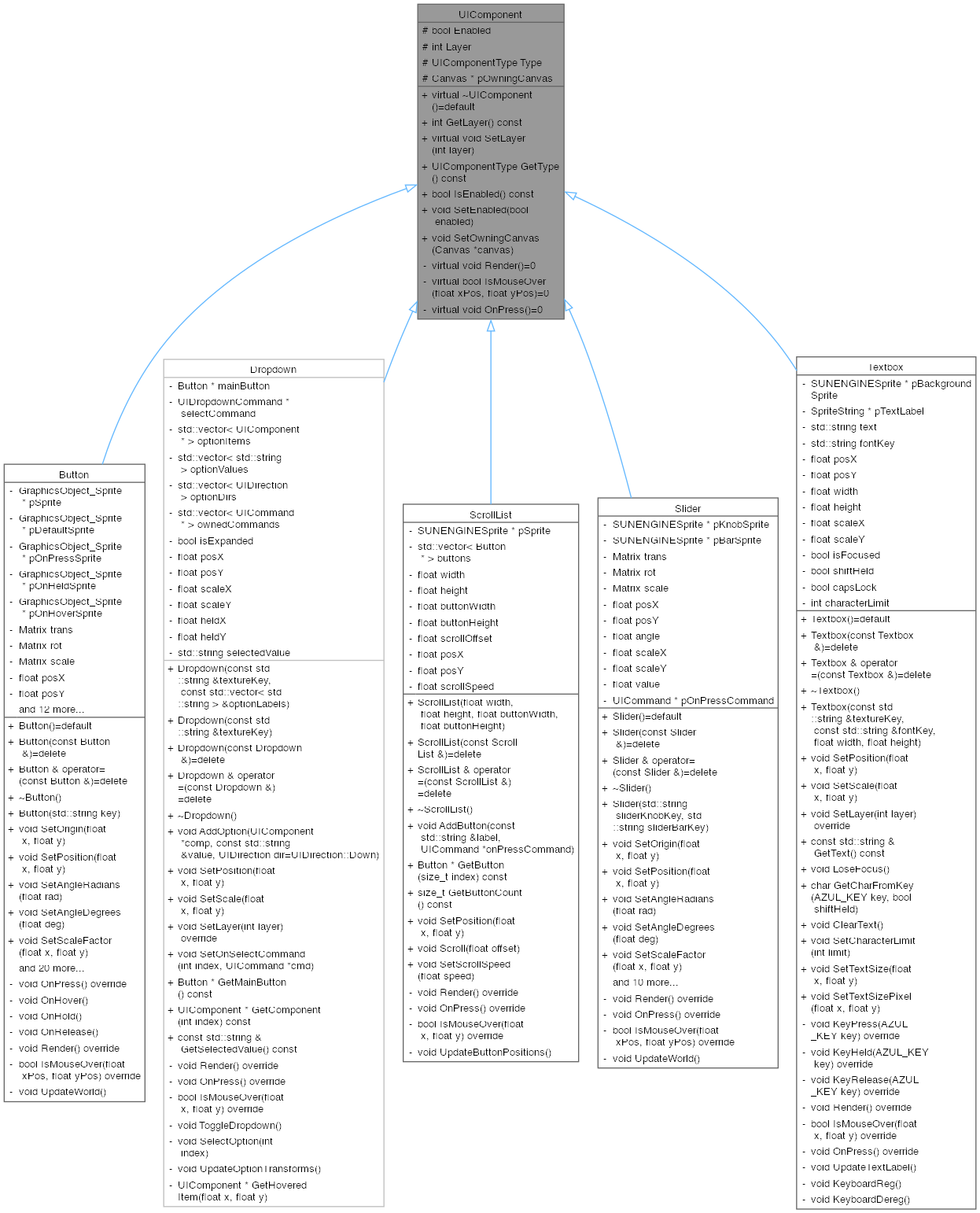

Inheritance diagram for UIComponent:

Public Member Functions
virtual	~UIComponent ()=default
	Virtual destructor.
int	GetLayer () const
	Gets the rendering layer of the component.
virtual void	SetLayer (int layer)
	Sets the rendering layer of the component.
UIComponentType	GetType () const
	Gets the type of the UI component.
bool	IsEnabled () const
	Returns whether the component is enabled or not.
void	SetEnabled (bool enabled)
	Sets the enabled state of the component.
void	SetOwningCanvas (Canvas *canvas)
	Gets the owning canvas of the component.

Protected Attributes
bool	Enabled = true
	Indicates if the component is enabled or not.
int	Layer = 0
	Rendering layer in.
UIComponentType	Type = UIComponentType::None
	Type of the UI component.
Canvas *	pOwningCanvas = nullptr
	Pointer to the owning canvas, if any.

Private Member Functions
virtual void	Render ()=0
	Renders the UI component. Must be implemented by derived classes.
virtual bool	IsMouseOver (float xPos, float yPos)=0
	Checks if the mouse is over the component. Must be implemented by derived classes.
virtual void	OnPress ()=0
	Handles press events on the component. Must be implemented by derived classes.

Friends
class	UIAttorney

Detailed Description

Abstract base class for all UI components.

The UIComponent class serves as the base class for all user interface elements in the engine, such as Button, Slider, Dropdown, Textbox, and more. It provides common properties like layer and type, and defines the interface for rendering, hit-testing, and input handling.

All UI components must inherit from this class and implement the pure virtual methods for rendering, mouse-over detection, and press handling.

Example usage (in a derived class):

  class MyCustomUI : public UIComponent {
  public:
      void Render() override { /* ... *\/ }
*     bool IsMouseOver(float x, float y) override { /* ... *\/ }
*     void OnPress() override { /* ... *\/ }
* };
*

See also

UIComponentType, UIAttorney

Member Function Documentation

GetLayer()

int UIComponent::GetLayer ( ) const

inline

Gets the rendering layer of the component.

Returns

The layer index.

Here is the caller graph for this function:

GetType()

UIComponentType UIComponent::GetType ( ) const

inline

Gets the type of the UI component.

Returns

The UIComponentType.

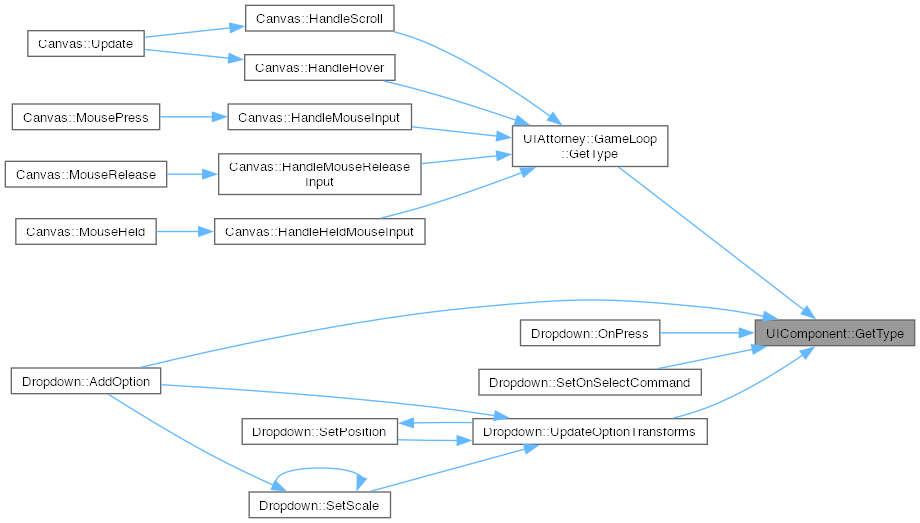

Here is the caller graph for this function:

IsEnabled()

bool UIComponent::IsEnabled ( ) const

inline

Returns whether the component is enabled or not.

Returns

True if enabled, false otherwise. Checks if the component is enabled.

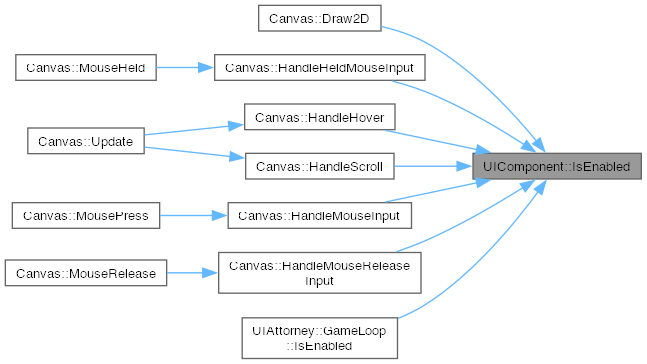

Here is the caller graph for this function:

IsMouseOver()

virtual bool UIComponent::IsMouseOver ( float xPos, float yPos )

privatepure virtual

Checks if the mouse is over the component. Must be implemented by derived classes.

Parameters

xPos	The x-coordinate of the mouse.
yPos	The y-coordinate of the mouse.

Returns

True if the mouse is over the component, false otherwise.

Implemented in Button, Dropdown, ScrollList, Slider, and Textbox.

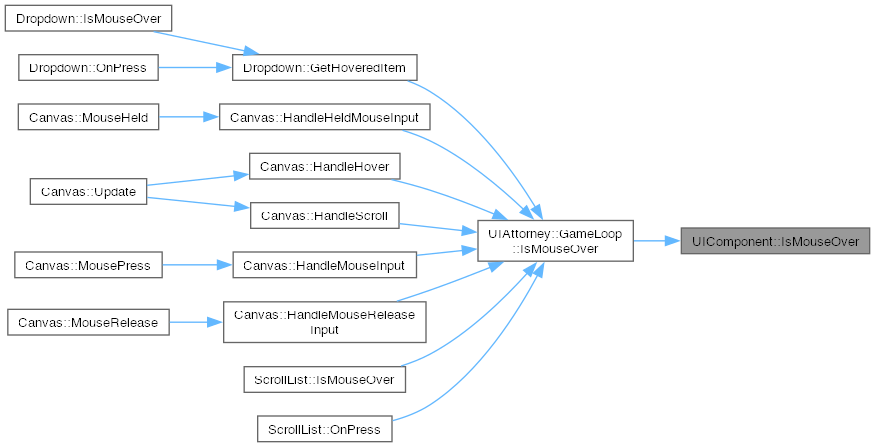

Here is the caller graph for this function:

OnPress()

virtual void UIComponent::OnPress ( )

privatepure virtual

Handles press events on the component. Must be implemented by derived classes.

Implemented in Button, Dropdown, ScrollList, Slider, and Textbox.

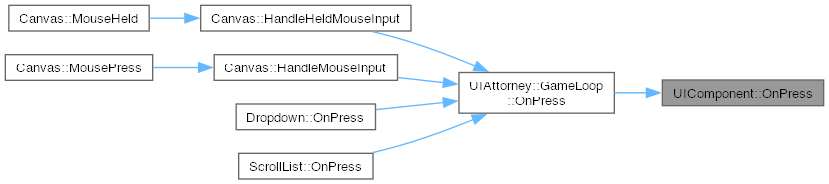

Here is the caller graph for this function:

Render()

virtual void UIComponent::Render ( )

privatepure virtual

Renders the UI component. Must be implemented by derived classes.

Implemented in Button, Dropdown, ScrollList, Slider, and Textbox.

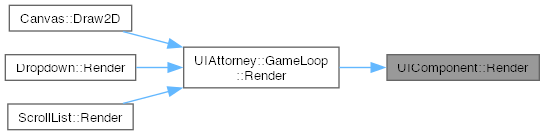

Here is the caller graph for this function:

SetEnabled()

void UIComponent::SetEnabled ( bool enabled )

inline

Sets the enabled state of the component.

Parameters

enabled

True to enable, false to disable. Sets the component's enabled state.

SetLayer()

void UIComponent::SetLayer ( int layer )

virtual

Sets the rendering layer of the component.

Parameters

layer

The layer index.

Reimplemented in Dropdown, Slider, and Textbox.

Here is the call graph for this function:

Here is the caller graph for this function:

SetOwningCanvas()

void UIComponent::SetOwningCanvas ( Canvas * canvas )

inline

Gets the owning canvas of the component.

Returns

Pointer to the owning canvas, or nullptr if not set.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• UIComponent.h
• UIComponent.cpp
