ScrollList Class Reference

A scrollable list of UI buttons. More...

#include <ScrollList.h>

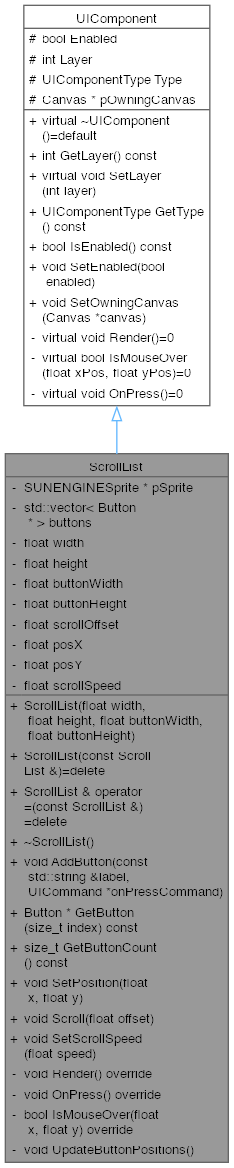

Inheritance diagram for ScrollList:

Public Member Functions
	ScrollList (float width, float height, float buttonWidth, float buttonHeight)
	Constructs a ScrollList with specified dimensions and button sizes.
	ScrollList (const ScrollList &)=delete
ScrollList &	operator= (const ScrollList &)=delete
void	AddButton (const std::string &label, UICommand *onPressCommand)
	Adds a button to the scroll list.
Button *	GetButton (size_t index) const
	Gets the specified button.
size_t	GetButtonCount () const
	Gets the number of buttons in the scroll list.
void	SetPosition (float x, float y)
	Sets the position of the scroll list.
void	Scroll (float offset)
	Scrolls the list by a given offset (typically in response to mouse wheel input).
void	SetScrollSpeed (float speed)
	Sets the scroll speed for the list.
Public Member Functions inherited from UIComponent
virtual	~UIComponent ()=default
	Virtual destructor.
int	GetLayer () const
	Gets the rendering layer of the component.
virtual void	SetLayer (int layer)
	Sets the rendering layer of the component.
UIComponentType	GetType () const
	Gets the type of the UI component.
bool	IsEnabled () const
	Returns whether the component is enabled or not.
void	SetEnabled (bool enabled)
	Sets the enabled state of the component.
void	SetOwningCanvas (Canvas *canvas)
	Gets the owning canvas of the component.

Private Member Functions
void	Render () override
	Renders the scroll list and its buttons.
void	OnPress () override
	Handles press events on the scroll list (not typically used).
bool	IsMouseOver (float x, float y) override
	Checks if the mouse is over the scroll list.
void	UpdateButtonPositions ()
	Updates the positions of the buttons based on the current scroll offset.

Private Attributes
SUNENGINESprite *	pSprite
	Background sprite for the scroll list.
std::vector< Button * >	buttons
	List of buttons in the scroll list.
float	width
	Width of the scroll list.
float	height
	Height of the scroll list.
float	buttonWidth
	Width of each button.
float	buttonHeight
	Height of each button.
float	scrollOffset
	Current scroll offset.
float	posX
	X-coordinate of the scroll list's position.
float	posY
	Y-coordinate of the scroll list's position.
float	scrollSpeed
	Speed of scrolling (multiplier for scroll offset)

Additional Inherited Members
Protected Attributes inherited from UIComponent
bool	Enabled = true
	Indicates if the component is enabled or not.
int	Layer = 0
	Rendering layer in.
UIComponentType	Type = UIComponentType::None
	Type of the UI component.
Canvas *	pOwningCanvas = nullptr
	Pointer to the owning canvas, if any.

Detailed Description

A scrollable list of UI buttons.

The ScrollList class provides a vertical list of buttons that can be scrolled if the content exceeds the visible area. It is useful for displaying selectable options, menus, or lists within a UI. Each button can have its own label and command. The ScrollList handles rendering only the visible buttons and manages their positions as the user scrolls.

Example usage:

ScrollList* list = new ScrollList(200.0f, 400.0f, 180.0f, 40.0f);
list->SetPosition(300.0f, 300.0f);
list->AddButton("Option 1", new MyCommand());
list->AddButton("Option 2", nullptr);
canvas->AddComponent(list);

See also

Button, Canvas, UICommand

Constructor & Destructor Documentation

ScrollList()

ScrollList::ScrollList	(	float	width,
		float	height,
		float	buttonWidth,
		float	buttonHeight )

Constructs a ScrollList with specified dimensions and button sizes.

Parameters

width	The width of the scroll list in pixels.
height	The height of the scroll list in pixels.
buttonWidth	The width of each button in pixels.
buttonHeight	The height of each button in pixels.

Member Function Documentation

AddButton()

void ScrollList::AddButton	(	const std::string &	label,
		UICommand *	onPressCommand )

Adds a button to the scroll list.

Parameters

label	The label for the button.
onPressCommand	The command to execute when the button is pressed.

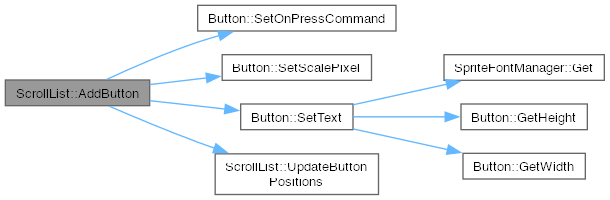

Here is the call graph for this function:

GetButton()

Button * ScrollList::GetButton

(

size_t

index

)

const

Gets the specified button.

Returns

The button at the given index.

GetButtonCount()

size_t ScrollList::GetButtonCount

(

)

const

Gets the number of buttons in the scroll list.

Returns

The count of buttons in the scroll list.

IsMouseOver()

bool ScrollList::IsMouseOver ( float x, float y )

overrideprivatevirtual

Checks if the mouse is over the scroll list.

Parameters

x	The x-coordinate of the mouse position.
y	The y-coordinate of the mouse position.

Returns

True if the mouse is over the scroll list, false otherwise.

Implements UIComponent.

Here is the call graph for this function:

OnPress()

void ScrollList::OnPress ( )

overrideprivatevirtual

Handles press events on the scroll list (not typically used).

Implements UIComponent.

Here is the call graph for this function:

Render()

void ScrollList::Render ( )

overrideprivatevirtual

Renders the scroll list and its buttons.

Implements UIComponent.

Here is the call graph for this function:

Scroll()

void ScrollList::Scroll

(

float

offset

)

Scrolls the list by a given offset (typically in response to mouse wheel input).

Parameters

offset

The scroll offset; positive or negative to scroll up or down.

Here is the call graph for this function:

SetPosition()

void ScrollList::SetPosition	(	float	x,
		float	y )

Sets the position of the scroll list.

Parameters

x	The x-coordinate of the scroll list's position.
y	The y-coordinate of the scroll list's position.

Here is the call graph for this function:

SetScrollSpeed()

void ScrollList::SetScrollSpeed

(

float

speed

)

Sets the scroll speed for the list.

Parameters

speed

The scroll speed multiplier.

---

The documentation for this class was generated from the following files:

• ScrollList.h
• ScrollList.cpp
