Slider Class Reference

A draggable UI slider component. More...

#include <Slider.h>

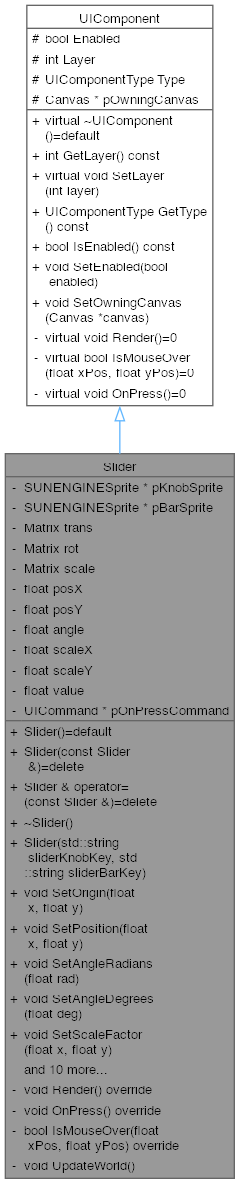

Inheritance diagram for Slider:

Public Member Functions
	Slider ()=default
	Default constructor.
	Slider (const Slider &)=delete
Slider &	operator= (const Slider &)=delete
	Slider (std::string sliderKnobKey, std::string sliderBarKey)
	Constructs a Slider with specified knob and bar texture keys.
void	SetOrigin (float x, float y)
	Sets the origin of the slider (for transformations).
void	SetPosition (float x, float y)
	Sets the position of the slider.
void	SetAngleRadians (float rad)
	Sets the angle of the slider in radians.
void	SetAngleDegrees (float deg)
	Sets the angle of the slider in degrees.
void	SetScaleFactor (float x, float y)
	Sets the scale factor of the slider.
void	SetScalePixel (float x, float y)
	Sets the scale of the slider in pixels.
float	GetWidth () const
	Gets the width of the slider (bar) in pixels.
float	GetHeight () const
	Gets the height of the slider (bar) in pixels.
float	GetAngle () const
	Gets the angle of the slider in radians.
float	GetScaleX () const
	Gets the x-scale factor of the slider.
float	GetScaleY () const
	Gets the y-scale factor of the slider.
void	SetLayer (int layer) override
	Sets the rendering layer of the slider.
void	SetOnPressCommand (UICommand *cmd)
	Sets the command to be executed when the slider is pressed.
void	SetValue (float value)
	Sets the value of the slider (0.0 to 1.0).
float	GetValue () const
	Gets the current value of the slider (0.0 to 1.0).
Public Member Functions inherited from UIComponent
virtual	~UIComponent ()=default
	Virtual destructor.
int	GetLayer () const
	Gets the rendering layer of the component.
UIComponentType	GetType () const
	Gets the type of the UI component.
bool	IsEnabled () const
	Returns whether the component is enabled or not.
void	SetEnabled (bool enabled)
	Sets the enabled state of the component.
void	SetOwningCanvas (Canvas *canvas)
	Gets the owning canvas of the component.

Private Member Functions
void	Render () override
	Renders the slider (bar and knob).
void	OnPress () override
	Handles press events (mouse interaction) for the slider.
bool	IsMouseOver (float xPos, float yPos) override
	Checks if the mouse is over the slider.
void	UpdateWorld ()
	Updates the world matrix of the slider.

Private Attributes
SUNENGINESprite *	pKnobSprite
	Sprite for the slider knob.
SUNENGINESprite *	pBarSprite
	Sprite for the slider bar.
Matrix	trans
	Transformation matrix.
Matrix	rot
	Rotation matrix.
Matrix	scale
	Scale matrix.
float	posX
	X position of the slider center.
float	posY
	Y position of the slider center.
float	angle
	Angle of the slider in radians.
float	scaleX
	X scale factor.
float	scaleY
	Y scale factor.
float	value
	Current value of the slider (0.0 to 1.0).
UICommand *	pOnPressCommand
	Command to execute when the slider is pressed.

Additional Inherited Members
Protected Attributes inherited from UIComponent
bool	Enabled = true
	Indicates if the component is enabled or not.
int	Layer = 0
	Rendering layer in.
UIComponentType	Type = UIComponentType::None
	Type of the UI component.
Canvas *	pOwningCanvas = nullptr
	Pointer to the owning canvas, if any.

Detailed Description

A draggable UI slider component.

The Slider class represents a UI slider that allows users to select a value by dragging a knob along a bar. It supports custom sprites for the knob and bar, and can be positioned, rotated, and scaled. The slider can execute a command when pressed, and its value can be set or queried programmatically.

Example usage:

Slider* slider = new Slider("KnobTextureKey", "BarTextureKey");
slider->SetOrigin(0.5f, 0.5f);
slider->SetPosition(400.0f, 200.0f);
slider->SetScaleFactor(1.0f, 1.0f);
slider->SetOnPressCommand(new MySliderCommand());
canvas->AddComponent(slider);

See also

Canvas, UICommand, SUNENGINESprite

Constructor & Destructor Documentation

Slider()

Slider::Slider	(	std::string	sliderKnobKey,
		std::string	sliderBarKey )

Constructs a Slider with specified knob and bar texture keys.

Parameters

sliderKnobKey	The texture key for the slider knob.
sliderBarKey	The texture key for the slider bar.

Member Function Documentation

GetAngle()

float Slider::GetAngle

(

)

const

Gets the angle of the slider in radians.

Returns

The angle in radians.

GetHeight()

float Slider::GetHeight

(

)

const

Gets the height of the slider (bar) in pixels.

Returns

The height of the slider.

GetScaleX()

float Slider::GetScaleX

(

)

const

Gets the x-scale factor of the slider.

Returns

The x-scale factor.

GetScaleY()

float Slider::GetScaleY

(

)

const

Gets the y-scale factor of the slider.

Returns

The y-scale factor.

GetValue()

float Slider::GetValue

(

)

const

Gets the current value of the slider (0.0 to 1.0).

Returns

The current slider value.

GetWidth()

float Slider::GetWidth

(

)

const

Gets the width of the slider (bar) in pixels.

Returns

The width of the slider.

IsMouseOver()

bool Slider::IsMouseOver ( float xPos, float yPos )

overrideprivatevirtual

Checks if the mouse is over the slider.

Parameters

xPos	The x-coordinate of the mouse position.
yPos	The y-coordinate of the mouse position.

Returns

True if the mouse is over the slider, false otherwise.

Implements UIComponent.

OnPress()

void Slider::OnPress ( )

overrideprivatevirtual

Handles press events (mouse interaction) for the slider.

Implements UIComponent.

Here is the call graph for this function:

Render()

void Slider::Render ( )

overrideprivatevirtual

Renders the slider (bar and knob).

Implements UIComponent.

Here is the call graph for this function:

SetAngleDegrees()

void Slider::SetAngleDegrees

(

float

deg

)

Sets the angle of the slider in degrees.

Parameters

deg	The angle in degrees.

SetAngleRadians()

void Slider::SetAngleRadians

(

float

rad

)

Sets the angle of the slider in radians.

Parameters

rad	The angle in radians.

SetLayer()

void Slider::SetLayer ( int layer )

overridevirtual

Sets the rendering layer of the slider.

Parameters

layer

The layer index.

Reimplemented from UIComponent.

SetOnPressCommand()

void Slider::SetOnPressCommand

(

UICommand *

cmd

)

Sets the command to be executed when the slider is pressed.

Parameters

cmd	The command to execute.

SetOrigin()

void Slider::SetOrigin	(	float	x,
		float	y )

Sets the origin of the slider (for transformations).

Parameters

x	The x-coordinate of the origin (0.0 to 1.0).
y	The y-coordinate of the origin (0.0 to 1.0).

SetPosition()

void Slider::SetPosition	(	float	x,
		float	y )

Sets the position of the slider.

Parameters

x	The x-coordinate of the slider's center.
y	The y-coordinate of the slider's center.

SetScaleFactor()

void Slider::SetScaleFactor	(	float	x,
		float	y )

Sets the scale factor of the slider.

Parameters

x	The x-scale factor.
y	The y-scale factor.

SetScalePixel()

void Slider::SetScalePixel	(	float	x,
		float	y )

Sets the scale of the slider in pixels.

Parameters

x	The width in pixels.
y	The height in pixels.

SetValue()

void Slider::SetValue

(

float

value

)

Sets the value of the slider (0.0 to 1.0).

Parameters

value

The new value for the slider.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• Slider.h
• Slider.cpp
