Inputable Class Reference

Base class for objects that can handle keyboard input events. More...

#include <Inputable.h>

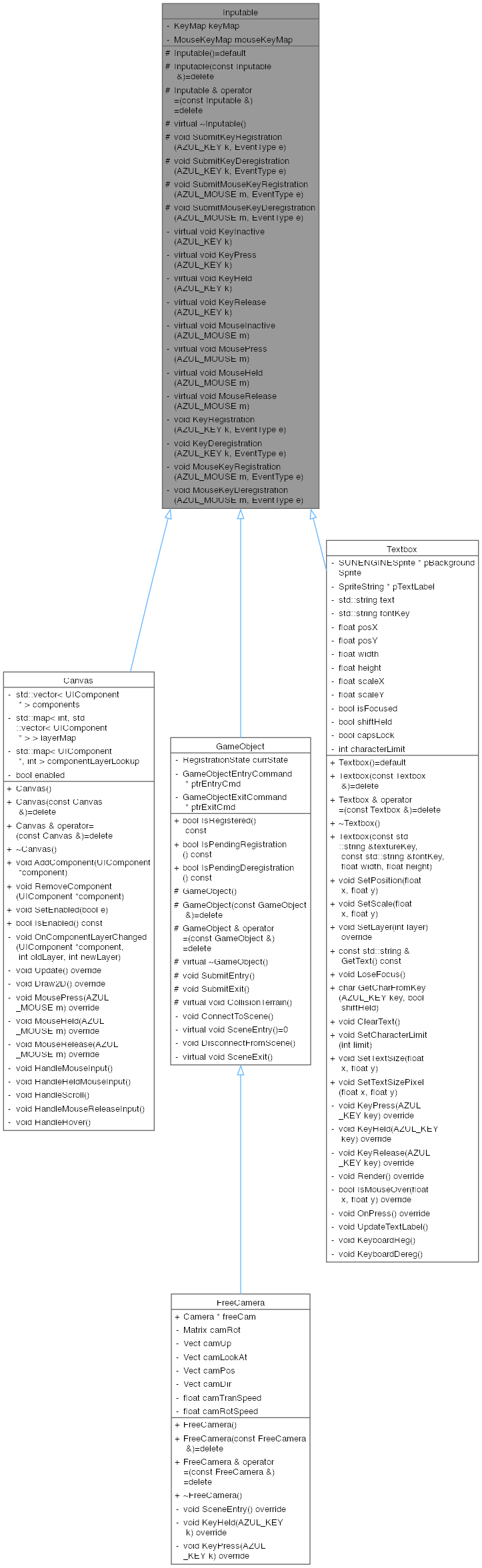

Inheritance diagram for Inputable:

Classes
struct	KeyEventPair
	Structure to hold key event pairs. More...
struct	MouseKeyEventPair
	Structure to hold mouse key event pairs. More...
struct	MouseRegistrationData
	Structure to hold registration data for mouse keys. More...
struct	RegistrationData
	Structure to hold registration data for keys. More...

Protected Member Functions
	Inputable (const Inputable &)=delete
Inputable &	operator= (const Inputable &)=delete
void	SubmitKeyRegistration (AZUL_KEY k, EventType e)
	Submits the key registration for the GameObject.
void	SubmitKeyDeregistration (AZUL_KEY k, EventType e)
	Submits the key deregistration for the GameObject.
void	SubmitMouseKeyRegistration (AZUL_MOUSE m, EventType e)
	Submits the mouse key registration for the GameObject.
void	SubmitMouseKeyDeregistration (AZUL_MOUSE m, EventType e)
	Submits the mouse key deregistration for the GameObject.

Private Types
using	KeyMap = std::map<KeyEventPair, RegistrationData*>
	Type alias for the key map.
using	MouseKeyMap = std::map<MouseKeyEventPair, MouseRegistrationData*>
	Type alias for the mouse key map.
using	KeyMapIt = KeyMap::iterator
	Type alias for the key map iterator.
using	MouseKeyMapIt = MouseKeyMap::iterator
	Type alias for the mouse key map iterator.

Private Member Functions
virtual void	KeyInactive (AZUL_KEY k)
	Virtual method to be implemented by derived classes for key inactive functionality.
virtual void	KeyPress (AZUL_KEY k)
	Virtual method to be implemented by derived classes for key press functionality.
virtual void	KeyHeld (AZUL_KEY k)
	Virtual method to be implemented by derived classes for key held functionality.
virtual void	KeyRelease (AZUL_KEY k)
	Virtual method to be implemented by derived classes for key release functionality.
virtual void	MouseInactive (AZUL_MOUSE m)
	Virtual method to be implemented by derived classes for mouse inactive functionality.
virtual void	MousePress (AZUL_MOUSE m)
	Virtual method to be implemented by derived classes for mouse press functionality.
virtual void	MouseHeld (AZUL_MOUSE m)
	Virtual method to be implemented by derived classes for mouse held functionality.
virtual void	MouseRelease (AZUL_MOUSE m)
	Virtual method to be implemented by derived classes for mouse release functionality.
void	KeyRegistration (AZUL_KEY k, EventType e)
	Registers the key for the GameObject.
void	KeyDeregistration (AZUL_KEY k, EventType e)
	Deregisters the key for the GameObject.
void	MouseKeyRegistration (AZUL_MOUSE m, EventType e)
	Registers the mouse key for the GameObject.
void	MouseKeyDeregistration (AZUL_MOUSE m, EventType e)
	Deregisters the mouse key for the GameObject.

Private Attributes
KeyMap	keyMap
	The key map of the GameObject.
MouseKeyMap	mouseKeyMap
	The mouse key map of the GameObject.

Friends
class	InputableAttorney

Detailed Description

Base class for objects that can handle keyboard input events.

The Inputable class provides a base implementation for objects that need to handle keyboard input events. It manages registration and deregistration with the KeyboardEventManager and provides virtual methods for handling different types of key events that can be overridden by derived classes.

Member Function Documentation

KeyDeregistration()

void Inputable::KeyDeregistration ( AZUL_KEY k, EventType e )

private

Deregisters the key for the GameObject.

Parameters

k	The key to deregister.
e	The event type to deregister.

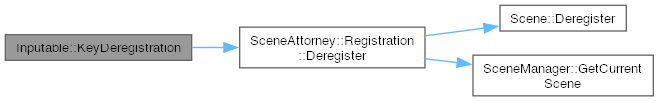

Here is the call graph for this function:

Here is the caller graph for this function:

KeyHeld()

virtual void Inputable::KeyHeld ( AZUL_KEY k )

inlineprivatevirtual

Virtual method to be implemented by derived classes for key held functionality.

Parameters

k	The key that is held.

Reimplemented in FreeCamera, and Textbox.

Here is the caller graph for this function:

KeyInactive()

virtual void Inputable::KeyInactive ( AZUL_KEY k )

inlineprivatevirtual

Virtual method to be implemented by derived classes for key inactive functionality.

Parameters

k	The key that is inactive.

Here is the caller graph for this function:

KeyPress()

virtual void Inputable::KeyPress ( AZUL_KEY k )

inlineprivatevirtual

Virtual method to be implemented by derived classes for key press functionality.

Parameters

k	The key that is pressed.

Reimplemented in FreeCamera, and Textbox.

Here is the caller graph for this function:

KeyRegistration()

void Inputable::KeyRegistration ( AZUL_KEY k, EventType e )

private

Registers the key for the GameObject.

Parameters

k	The key to register.
e	The event type to register.

Here is the call graph for this function:

Here is the caller graph for this function:

KeyRelease()

virtual void Inputable::KeyRelease ( AZUL_KEY k )

inlineprivatevirtual

Virtual method to be implemented by derived classes for key release functionality.

Parameters

k	The key that is released.

Reimplemented in Textbox.

Here is the caller graph for this function:

MouseHeld()

virtual void Inputable::MouseHeld ( AZUL_MOUSE m )

inlineprivatevirtual

Virtual method to be implemented by derived classes for mouse held functionality.

Parameters

m	The mouse key that is held.

Reimplemented in Canvas.

Here is the caller graph for this function:

MouseInactive()

virtual void Inputable::MouseInactive ( AZUL_MOUSE m )

inlineprivatevirtual

Virtual method to be implemented by derived classes for mouse inactive functionality.

Parameters

m	The mouse key that is inactive.

Here is the caller graph for this function:

MouseKeyDeregistration()

void Inputable::MouseKeyDeregistration ( AZUL_MOUSE m, EventType e )

private

Deregisters the mouse key for the GameObject.

Parameters

m	The mouse key to deregister.
e	The event type to deregister.

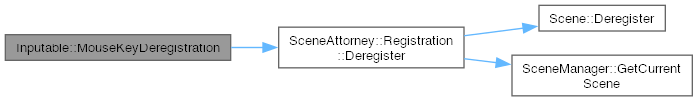

Here is the call graph for this function:

Here is the caller graph for this function:

MouseKeyRegistration()

void Inputable::MouseKeyRegistration ( AZUL_MOUSE m, EventType e )

private

Registers the mouse key for the GameObject.

Parameters

m	The mouse key to register.
e	The event type to register.

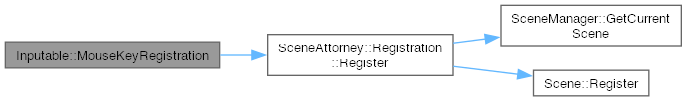

Here is the call graph for this function:

Here is the caller graph for this function:

MousePress()

virtual void Inputable::MousePress ( AZUL_MOUSE m )

inlineprivatevirtual

Virtual method to be implemented by derived classes for mouse press functionality.

Parameters

m	The mouse key that is pressed.

Reimplemented in Canvas.

Here is the caller graph for this function:

MouseRelease()

virtual void Inputable::MouseRelease ( AZUL_MOUSE m )

inlineprivatevirtual

Virtual method to be implemented by derived classes for mouse release functionality.

Parameters

m	The mouse key that is released.

Reimplemented in Canvas.

Here is the caller graph for this function:

SubmitKeyDeregistration()

void Inputable::SubmitKeyDeregistration ( AZUL_KEY k, EventType e )

protected

Submits the key deregistration for the GameObject.

Parameters

k	The key to deregister.
e	The event type to deregister.

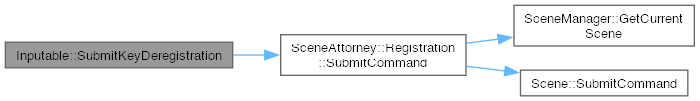

Here is the call graph for this function:

Here is the caller graph for this function:

SubmitKeyRegistration()

void Inputable::SubmitKeyRegistration ( AZUL_KEY k, EventType e )

protected

Submits the key registration for the GameObject.

Parameters

k	The key to register.
e	The event type to register.

Here is the call graph for this function:

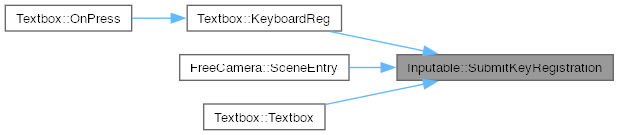

Here is the caller graph for this function:

SubmitMouseKeyDeregistration()

void Inputable::SubmitMouseKeyDeregistration ( AZUL_MOUSE m, EventType e )

protected

Submits the mouse key deregistration for the GameObject.

Parameters

m	The mouse key to deregister.
e	The event type to deregister.

Here is the call graph for this function:

Here is the caller graph for this function:

SubmitMouseKeyRegistration()

void Inputable::SubmitMouseKeyRegistration ( AZUL_MOUSE m, EventType e )

protected

Submits the mouse key registration for the GameObject.

Parameters

m	The mouse key to register.
e	The event type to register.

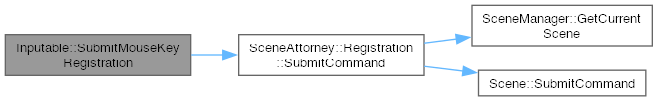

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• Inputable.h
• Inputable.cpp
