Scene Class Reference

Represents a scene in the engine. More...

#include <Scene.h>

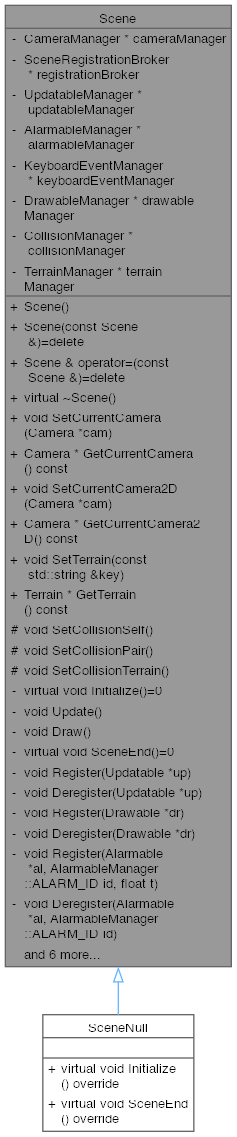

Inheritance diagram for Scene:

Public Member Functions
	Scene (const Scene &)=delete
Scene &	operator= (const Scene &)=delete
void	SetCurrentCamera (Camera *cam)
	Sets the current 3D camera for the scene.
Camera *	GetCurrentCamera () const
	Gets the current camera for the scene.
void	SetCurrentCamera2D (Camera *cam)
	Sets the current 2D camera for the scene.
Camera *	GetCurrentCamera2D () const
	Gets the current 2D camera for the scene.
void	SetTerrain (const std::string &key)
	Sets the terrain for the scene using a key.
Terrain *	GetTerrain () const
	Sets the terrain for the scene using a pointer to a Terrain object.

Protected Member Functions
template<typename C>
void	SetCollisionSelf ()
	Sets the collision self test for the specified collidable type.
template<typename C1, typename C2>
void	SetCollisionPair ()
	Sets the collision pair test for the specified collidable types.
template<typename Type>
void	SetCollisionTerrain ()
	Sets up collision detection between the specified type and the current terrain.

Private Member Functions
virtual void	Initialize ()=0
	Initializes the scene. Defined by the user.
void	Update ()
	Updates the scene. Specifically, the broker and managers other than draw.
void	Draw ()
	Draws the scene.
virtual void	SceneEnd ()=0
	Ends the scene. Defined by the user.
void	Register (Updatable *up)
	Registers an updatable GameObject.
void	Deregister (Updatable *up)
	Deregisters an updatable GameObject.
void	Register (Drawable *dr)
	Registers a drawable GameObject.
void	Deregister (Drawable *dr)
	Deregisters a drawable GameObject.
void	Register (Alarmable *al, AlarmableManager::ALARM_ID id, float t)
	Registers an alarmable GameObject.
void	Deregister (Alarmable *al, AlarmableManager::ALARM_ID id)
	Deregisters an alarmable GameObject.
void	Register (Inputable *in, AZUL_KEY k, EventType e)
	Registers an inputable GameObject.
void	Deregister (Inputable *in, AZUL_KEY k, EventType e)
	Deregisters an inputable GameObject.
void	Register (Inputable *in, AZUL_MOUSE m, EventType e)
	Registers an inputable GameObject for mouse events.
void	Deregister (Inputable *in, AZUL_MOUSE m, EventType e)
	Deregisters an inputable GameObject for mouse events.
void	SubmitCommand (CommandBase *cmd)
	Submits a command to the scene.
CollisionManager *	GetCollisionManager ()
	Gets the collision manager for the scene.

Private Attributes
CameraManager *	cameraManager
	Pointer to the camera manager.
SceneRegistrationBroker *	registrationBroker
	Pointer to the scene registration broker.
UpdatableManager *	updatableManager
	Pointer to the updatable manager.
AlarmableManager *	alarmableManager
	Pointer to the alarmable manager.
KeyboardEventManager *	keyboardEventManager
	Pointer to the keyboard event manager.
DrawableManager *	drawableManager
	Pointer to the drawable manager.
CollisionManager *	collisionManager
	Pointer to the collision manager.
TerrainManager *	terrainManager
	Pointer to the current terrain.

Friends
class	SceneAttorney

Detailed Description

Represents a scene in the engine.

The Scene class is responsible for managing the GameObjects and their interactions within a scene. It provides methods to initialize, update, draw, and end the scene. It also manages the registration and deregistration of GameObjects for various systems such as updates, drawing, alarms, input, and collisions.

Member Function Documentation

Deregister() [1/5]

void Scene::Deregister ( Alarmable * al, AlarmableManager::ALARM_ID id )

private

Deregisters an alarmable GameObject.

Parameters

al	Pointer to the alarmable GameObject.
id	The alarm ID to deregister.

Deregister() [2/5]

void Scene::Deregister ( Drawable * dr )

private

Deregisters a drawable GameObject.

Parameters

dr	Pointer to the drawable GameObject.

Deregister() [3/5]

void Scene::Deregister ( Inputable * in, AZUL_KEY k, EventType e )

private

Deregisters an inputable GameObject.

Parameters

in	Pointer to the inputable GameObject.
k	The key to deregister.
e	The event type to deregister.

Deregister() [4/5]

void Scene::Deregister ( Inputable * in, AZUL_MOUSE m, EventType e )

private

Deregisters an inputable GameObject for mouse events.

Parameters

in	Pointer to the inputable GameObject.
m	The mouse key to deregister.
e	The event type to deregister.

Deregister() [5/5]

void Scene::Deregister ( Updatable * up )

private

Deregisters an updatable GameObject.

Parameters

up	Pointer to the updatable GameObject.

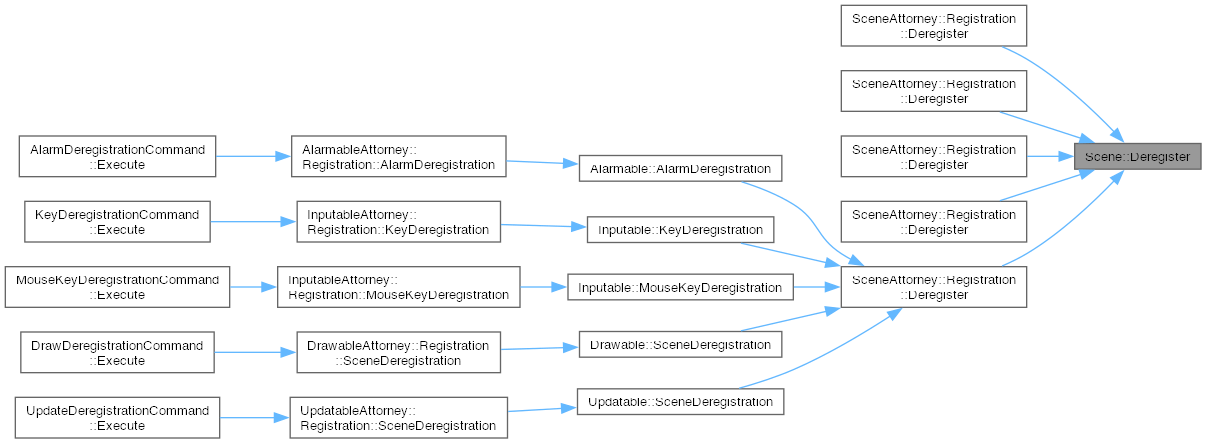

Here is the caller graph for this function:

GetCollisionManager()

CollisionManager * Scene::GetCollisionManager ( )

private

Gets the collision manager for the scene.

Returns

Pointer to the collision manager.

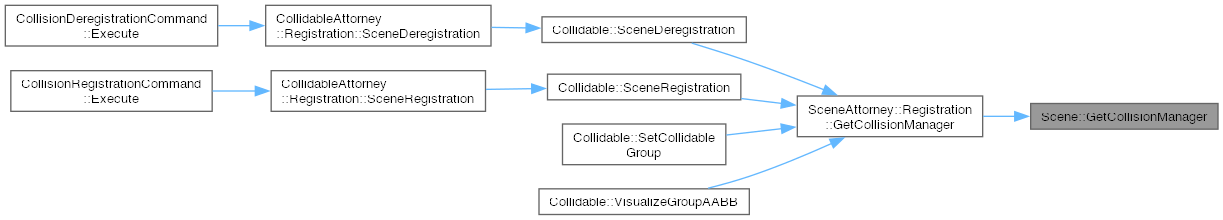

Here is the caller graph for this function:

GetCurrentCamera()

Camera * Scene::GetCurrentCamera

(

)

const

Gets the current camera for the scene.

Returns

Pointer to the current camera.

GetCurrentCamera2D()

Camera * Scene::GetCurrentCamera2D

(

)

const

Gets the current 2D camera for the scene.

Returns

Pointer to the current 2D camera.

GetTerrain()

Terrain * Scene::GetTerrain

(

)

const

Sets the terrain for the scene using a pointer to a Terrain object.

Parameters

t	Pointer to the Terrain object.

Here is the caller graph for this function:

Initialize()

virtual void Scene::Initialize ( )

privatepure virtual

Initializes the scene. Defined by the user.

Implemented in SceneNull.

Here is the caller graph for this function:

Register() [1/5]

void Scene::Register ( Alarmable * al, AlarmableManager::ALARM_ID id, float t )

private

Registers an alarmable GameObject.

Parameters

al	Pointer to the alarmable GameObject.
id	The alarm ID to register.
t	The time duration for the alarm.

Register() [2/5]

void Scene::Register ( Drawable * dr )

private

Registers a drawable GameObject.

Parameters

dr	Pointer to the drawable GameObject.

Register() [3/5]

void Scene::Register ( Inputable * in, AZUL_KEY k, EventType e )

private

Registers an inputable GameObject.

Parameters

in	Pointer to the inputable GameObject.
k	The key to register.
e	The event type to register.

Register() [4/5]

void Scene::Register ( Inputable * in, AZUL_MOUSE m, EventType e )

private

Registers an inputable GameObject for mouse events.

Parameters

in	Pointer to the inputable GameObject.
m	The mouse key to register.
e	The event type to register.

Register() [5/5]

void Scene::Register ( Updatable * up )

private

Registers an updatable GameObject.

Parameters

up	Pointer to the updatable GameObject.

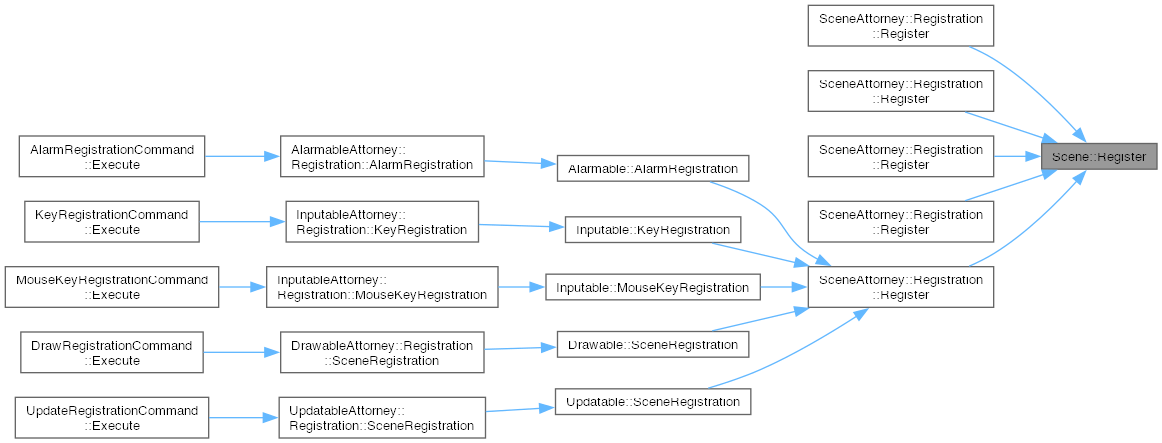

Here is the caller graph for this function:

SceneEnd()

virtual void Scene::SceneEnd ( )

privatepure virtual

Ends the scene. Defined by the user.

Implemented in SceneNull.

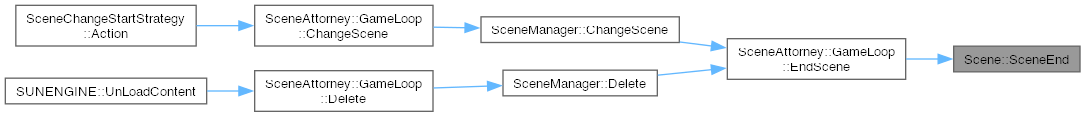

Here is the caller graph for this function:

SetCollisionPair()

template<typename C1, typename C2>

void Scene::SetCollisionPair ( )

inlineprotected

Sets the collision pair test for the specified collidable types.

Template Parameters

C1	The first collidable type.
C2	The second collidable type.

SetCollisionSelf()

template<typename C>

void Scene::SetCollisionSelf ( )

inlineprotected

Sets the collision self test for the specified collidable type.

Template Parameters

C	The collidable type.

SetCollisionTerrain()

template<typename Type>

void Scene::SetCollisionTerrain ( )

inlineprotected

Sets up collision detection between the specified type and the current terrain.

Template Parameters

Type	The type of the collidable object.

Here is the call graph for this function:

SetCurrentCamera()

void Scene::SetCurrentCamera

(

Camera *

cam

)

Sets the current 3D camera for the scene.

Parameters

cam	Pointer to the camera.

SetCurrentCamera2D()

void Scene::SetCurrentCamera2D

(

Camera *

cam

)

Sets the current 2D camera for the scene.

Parameters

cam	Pointer to the 2D camera.

SetTerrain()

void Scene::SetTerrain

(

const std::string &

key

)

Sets the terrain for the scene using a key.

Parameters

key	The key associated with the terrain in the TerrainManager.

Here is the call graph for this function:

SubmitCommand()

void Scene::SubmitCommand ( CommandBase * cmd )

private

Submits a command to the scene.

Parameters

cmd	Pointer to the command.

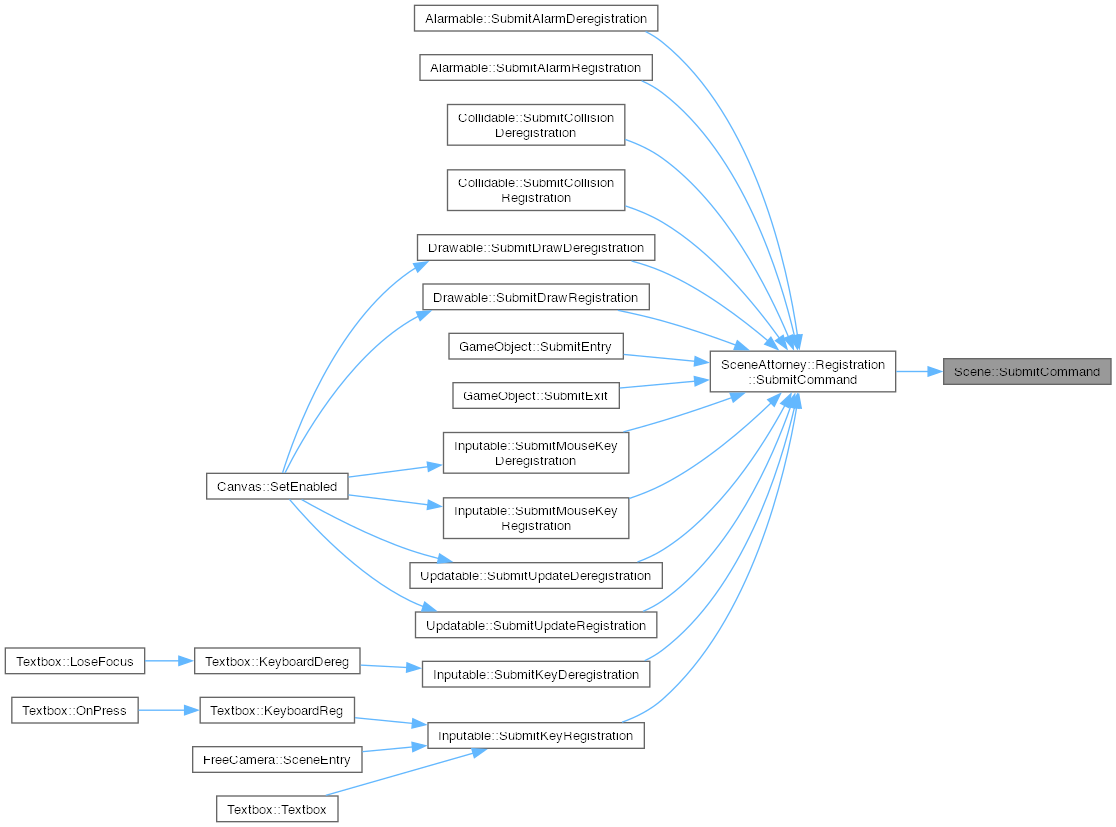

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• Scene.h
• Scene.cpp
