Terrain Class Reference

Represents a 3D terrain generated from a heightmap. More...

#include <Terrain.h>

Classes
struct	CellMinMax
	< Structure to hold min and max Y values for terrain cells. More...

Public Member Functions
	Terrain (const Terrain &)=delete
Terrain &	operator= (const Terrain &)=delete
	Terrain (const char *heightmapFile, float sideLength, float maxHeight, float worldZeroAltitude, std::string texture, float uRep, float vRep)
	Constructs a Terrain from a heightmap file.
void	ShowCellBelow (const Vect &pos) const
	Visualizes the cell below a given world position.
Vect	GetHeight (const Vect &pos)
	Gets the height at a given world position.
Vect	GetHeightAndNormal (const Vect &pos, Vect &outNormal)
	Gets the height and normal at a given world position.
const CollisionVolumeAABB &	GetCellAABB (int x, int z) const
	Gets the AABB for a specific terrain cell.
void	GetCoveredCells (const CollisionVolume &vol, int &xMin, int &zMin, int &xMax, int &zMax) const
	Computes the range of cells covered by a collision volume.
int	GetMaxCellIndex () const
	Gets the maximum valid cell index (for both X and Z).
float	GetSideLen () const
	Gets the side length of the terrain.
int	GetImgSize () const
	Gets the size of the heightmap image (number of pixels per side).
void	EnableWireframe (bool enable)
	Enables or disables wireframe rendering for the terrain.
void	EnableMinMax (bool enable)
	Enables or disables MinMax visualization for terrain cells.

Private Member Functions
void	Draw ()
	Renders the terrain.
int	VertexIndex (int i, int j)
	Computes the vertex index for grid coordinates.
int	PixelIndex (int i, int j)
	Computes the pixel index for grid coordinates.
int	TriIndex (int i, int j)
	Computes the triangle index for grid coordinates.
float	GetCellX (int j) const
float	GetCellZ (int i) const
float	GetCellLength () const

Private Attributes
GraphicsObject_WireframeAutoColor *	pWireframe
	Wireframe object for terrain visualization.
GraphicsObject_TextureFlat *	pGOTerrain
	Graphics object for terrain texture.
Model *	pModelTerrain
	Model object for terrain geometry.
VertexStride_VUN *	pVerts
	Vertex data for terrain.
TriangleIndex *	tlist
	Triangle list for terrain.
int	imgSize
	Size of the heightmap image (number of pixels per side).
float	sideLen
	Length of one side of the terrain (world units).
CellMinMax *	cellBounds
	Array of min/max Y values for terrain cells.
CollisionVolumeAABB *	cellAABBs
	Array of AABBs for terrain cells.
bool	wireframeEnabled
	Flag to enable/disable wireframe rendering.
bool	minmaxEnabled
	Flag to enable/disable MinMax visualization.

Friends
class	TerrainAttorney

Detailed Description

Represents a 3D terrain generated from a heightmap.

The Terrain class encapsulates the data and operations for a 3D terrain, including geometry generation, collision detection, and rendering. It provides methods to query height and normal at a position, visualize cells, and interact with collidable objects.

Constructor & Destructor Documentation

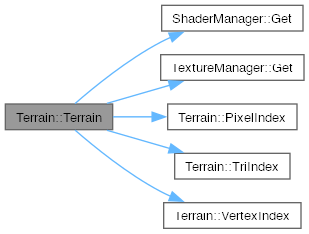

Terrain()

Terrain::Terrain	(	const char *	heightmapFile,
		float	sideLength,
		float	maxHeight,
		float	worldZeroAltitude,
		std::string	texture,
		float	uRep,
		float	vRep )

Constructs a Terrain from a heightmap file.

Parameters

heightmapFile	Path to the heightmap image file.
sideLength	Length of one side of the terrain (world units).
maxHeight	Maximum height of the terrain (world units).
worldZeroAltitude	Altitude in world space corresponding to heightmap zero.
texture	Path to the texture file.
uRep	U texture repeat factor.
vRep	V texture repeat factor.

Here is the call graph for this function:

Member Function Documentation

EnableMinMax()

void Terrain::EnableMinMax

(

bool

enable

)

Enables or disables MinMax visualization for terrain cells.

Parameters

enable

True to enable MinMax visualization, false to disable.

EnableWireframe()

void Terrain::EnableWireframe

(

bool

enable

)

Enables or disables wireframe rendering for the terrain.

Parameters

enable

True to enable wireframe, false to disable.

GetCellAABB()

const CollisionVolumeAABB & Terrain::GetCellAABB	(	int	x,
		int	z ) const

Gets the AABB for a specific terrain cell.

Parameters

x	Cell X index.
z	Cell Z index.

Returns

Reference to the cell's CollisionVolumeAABB.

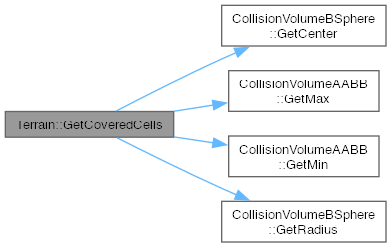

GetCoveredCells()

void Terrain::GetCoveredCells	(	const CollisionVolume &	vol,
		int &	xMin,
		int &	zMin,
		int &	xMax,
		int &	zMax ) const

Computes the range of cells covered by a collision volume.

Parameters

vol	Collision volume.
xMin	Output minimum X index.
zMin	Output minimum Z index.
xMax	Output maximum X index.
zMax	Output maximum Z index.

Here is the call graph for this function:

Here is the caller graph for this function:

GetHeight()

Vect Terrain::GetHeight

(

const Vect &

pos

)

Gets the height at a given world position.

Parameters

pos	World position to query.

Returns

Height as a Vect.

Here is the call graph for this function:

GetHeightAndNormal()

Vect Terrain::GetHeightAndNormal	(	const Vect &	pos,
		Vect &	outNormal )

Gets the height and normal at a given world position.

Parameters

pos	World position to query.
outNormal	Output parameter for the normal vector.

Returns

Height as a Vect.

Here is the call graph for this function:

GetImgSize()

int Terrain::GetImgSize

(

)

const

Gets the size of the heightmap image (number of pixels per side).

Returns

Image size.

Here is the caller graph for this function:

GetMaxCellIndex()

int Terrain::GetMaxCellIndex

(

)

const

Gets the maximum valid cell index (for both X and Z).

Returns

Maximum cell index.

GetSideLen()

float Terrain::GetSideLen

(

)

const

Gets the side length of the terrain.

Returns

Side length.

PixelIndex()

int Terrain::PixelIndex ( int i, int j )

private

Computes the pixel index for grid coordinates.

Parameters

i	Row index.
j	Column index.

Returns

Pixel index.

Here is the caller graph for this function:

ShowCellBelow()

void Terrain::ShowCellBelow

(

const Vect &

pos

)

const

Visualizes the cell below a given world position.

Parameters

pos	World position to query.

Here is the call graph for this function:

TriIndex()

int Terrain::TriIndex ( int i, int j )

private

Computes the triangle index for grid coordinates.

Parameters

i	Row index.
j	Column index.

Returns

Triangle index.

Here is the caller graph for this function:

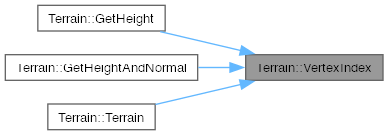

VertexIndex()

int Terrain::VertexIndex ( int i, int j )

private

Computes the vertex index for grid coordinates.

Parameters

i	Row index.
j	Column index.

Returns

Vertex index.

Here is the caller graph for this function:

---
