CollisionVolumeAABB Class Reference

Represents an axis-aligned bounding box (AABB) collision volume. More...

#include <CollisionVolumeAABB.h>

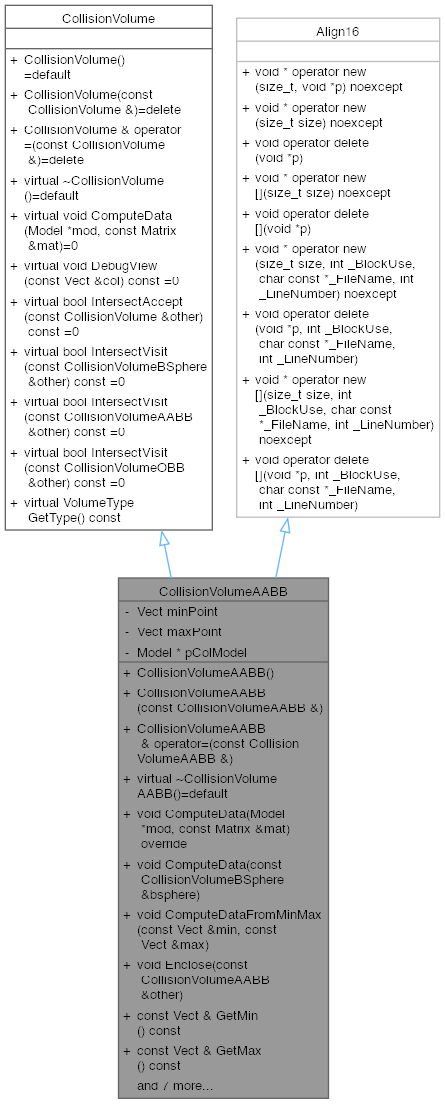

Inheritance diagram for CollisionVolumeAABB:

Public Member Functions
	CollisionVolumeAABB (const CollisionVolumeAABB &)
CollisionVolumeAABB &	operator= (const CollisionVolumeAABB &)
void	ComputeData (Model *mod, const Matrix &mat) override
	Computes the collision data for the AABB from a model and transformation matrix.
void	ComputeData (const CollisionVolumeBSphere &bsphere)
	Computes the AABB from a bounding sphere.
void	ComputeDataFromMinMax (const Vect &min, const Vect &max)
	Sets the AABB from explicit min and max points.
void	Enclose (const CollisionVolumeAABB &other)
	Expands this AABB to enclose another AABB.
const Vect &	GetMin () const
	Gets the minimum point of the AABB.
const Vect &	GetMax () const
	Gets the maximum point of the AABB.
Model *	GetModel () const
	Gets the model associated with this AABB.
void	DebugView (const Vect &col) const override
	Visualizes the AABB for debugging purposes.
bool	IntersectAccept (const CollisionVolume &other) const override
	Accepts a collision test with another collision volume (double dispatch).
bool	IntersectVisit (const CollisionVolumeBSphere &other) const override
	Tests intersection with a bounding sphere.
bool	IntersectVisit (const CollisionVolumeAABB &other) const override
	Tests intersection with another AABB.
bool	IntersectVisit (const CollisionVolumeOBB &other) const override
	Tests intersection with an oriented bounding box (OBB).
VolumeType	GetType () const override
	Gets the type of this collision volume.
Public Member Functions inherited from CollisionVolume
	CollisionVolume (const CollisionVolume &)=delete
CollisionVolume &	operator= (const CollisionVolume &)=delete
Public Member Functions inherited from Align16
void *	operator new (size_t, void *p) noexcept
void *	operator new (size_t size) noexcept
void	operator delete (void *p)
void *	operator new[] (size_t size) noexcept
void	operator delete[] (void *p)
void *	operator new (size_t size, int _BlockUse, char const *_FileName, int _LineNumber) noexcept
void	operator delete (void *p, int _BlockUse, char const *_FileName, int _LineNumber)
void *	operator new[] (size_t size, int _BlockUse, char const *_FileName, int _LineNumber) noexcept
void	operator delete[] (void *p, int _BlockUse, char const *_FileName, int _LineNumber)

Private Attributes
Vect	minPoint
	The minimum point of the AABB.
Vect	maxPoint
	The maximum point of the AABB.
Model *	pColModel
	Pointer to the model associated with this AABB.

Friends
class	CollidableGroup

Detailed Description

Represents an axis-aligned bounding box (AABB) collision volume.

The CollisionVolumeAABB class implements an axis-aligned bounding box for collision detection. An AABB is a rectangular box aligned with the world axes, defined by its minimum and maximum corner points. This class provides methods to compute the AABB from a model and transformation matrix, retrieve its properties, and perform intersection tests with other collision volumes.

Typical usage involves calling ComputeData() to initialize the AABB from a model and world matrix, then using intersection methods for collision queries.

See also

CollisionVolume, CollisionVolumeOBB, CollisionVolumeBSphere, SUNENGINEMathTools

Member Function Documentation

ComputeData() [1/2]

void CollisionVolumeAABB::ComputeData

(

const CollisionVolumeBSphere &

bsphere

)

Computes the AABB from a bounding sphere.

Parameters

bsphere

The bounding sphere to enclose.

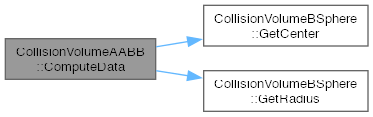

Here is the call graph for this function:

ComputeData() [2/2]

void CollisionVolumeAABB::ComputeData ( Model * mod, const Matrix & mat )

overridevirtual

Computes the collision data for the AABB from a model and transformation matrix.

Parameters

mod	Pointer to the model.
mat	The transformation matrix.

This method calculates the AABB's min and max points in world space based on the model's local AABB and the provided transformation matrix.

Implements CollisionVolume.

Here is the caller graph for this function:

ComputeDataFromMinMax()

void CollisionVolumeAABB::ComputeDataFromMinMax	(	const Vect &	min,
		const Vect &	max )

Sets the AABB from explicit min and max points.

Parameters

min	The minimum point of the AABB.
max	The maximum point of the AABB.

DebugView()

void CollisionVolumeAABB::DebugView ( const Vect & col ) const

overridevirtual

Visualizes the AABB for debugging purposes.

Parameters

col	The color to use for visualization.

Implements CollisionVolume.

Here is the call graph for this function:

Enclose()

void CollisionVolumeAABB::Enclose

(

const CollisionVolumeAABB &

other

)

Expands this AABB to enclose another AABB.

Parameters

other

The other AABB to enclose.

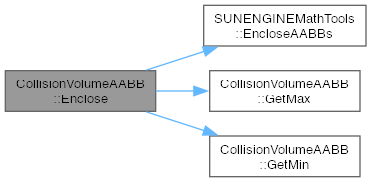

Here is the call graph for this function:

GetMax()

const Vect & CollisionVolumeAABB::GetMax

(

)

const

Gets the maximum point of the AABB.

Returns

The maximum point of the AABB.

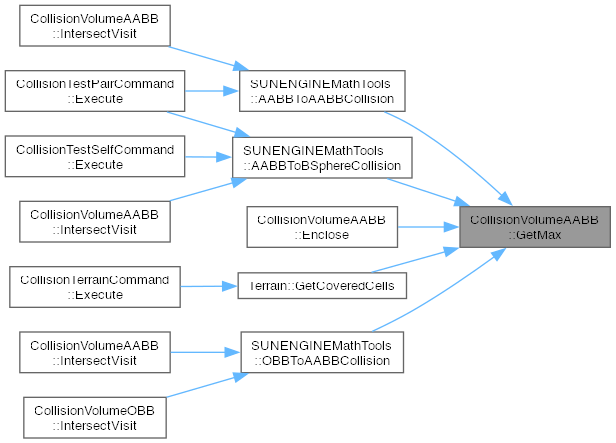

Here is the caller graph for this function:

GetMin()

const Vect & CollisionVolumeAABB::GetMin

(

)

const

Gets the minimum point of the AABB.

Returns

The minimum point of the AABB.

Here is the caller graph for this function:

GetModel()

Model * CollisionVolumeAABB::GetModel

(

)

const

Gets the model associated with this AABB.

Returns

Pointer to the model.

GetType()

VolumeType CollisionVolumeAABB::GetType ( ) const

inlineoverridevirtual

Gets the type of this collision volume.

Returns

The volume type (VolumeType::AABB).

Reimplemented from CollisionVolume.

IntersectAccept()

bool CollisionVolumeAABB::IntersectAccept ( const CollisionVolume & other ) const

overridevirtual

Accepts a collision test with another collision volume (double dispatch).

Parameters

other

The other collision volume.

Returns

True if the volumes intersect, false otherwise.

Implements CollisionVolume.

IntersectVisit() [1/3]

bool CollisionVolumeAABB::IntersectVisit ( const CollisionVolumeAABB & other ) const

overridevirtual

Tests intersection with another AABB.

Parameters

other

The other AABB volume.

Returns

True if the AABBs intersect, false otherwise.

Implements CollisionVolume.

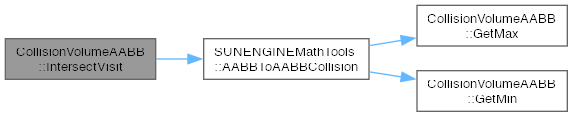

Here is the call graph for this function:

IntersectVisit() [2/3]

bool CollisionVolumeAABB::IntersectVisit ( const CollisionVolumeBSphere & other ) const

overridevirtual

Tests intersection with a bounding sphere.

Parameters

other

The bounding sphere volume.

Returns

True if the AABB and sphere intersect, false otherwise.

Implements CollisionVolume.

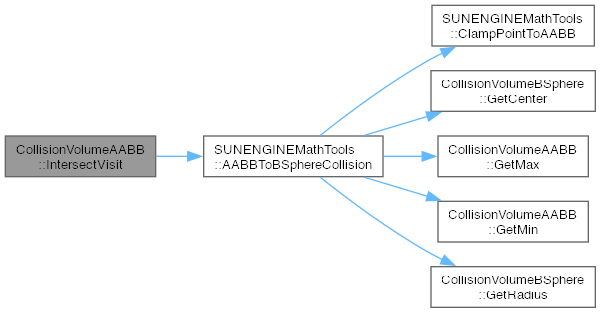

Here is the call graph for this function:

IntersectVisit() [3/3]

bool CollisionVolumeAABB::IntersectVisit ( const CollisionVolumeOBB & other ) const

overridevirtual

Tests intersection with an oriented bounding box (OBB).

Parameters

other

The OBB volume.

Returns

True if the AABB and OBB intersect, false otherwise.

Implements CollisionVolume.

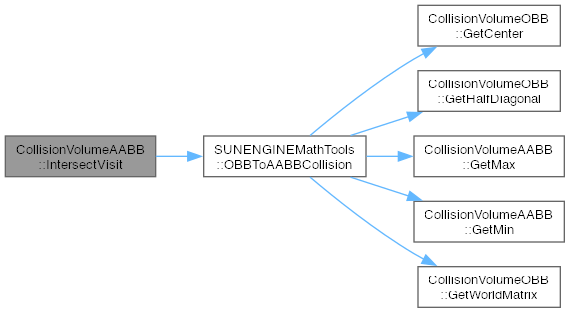

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• CollisionVolumeAABB.h
• CollisionVolumeAABB.cpp
