CollisionVolume Class Reference

Base class for collision volumes. More...

#include <CollisionVolume.h>

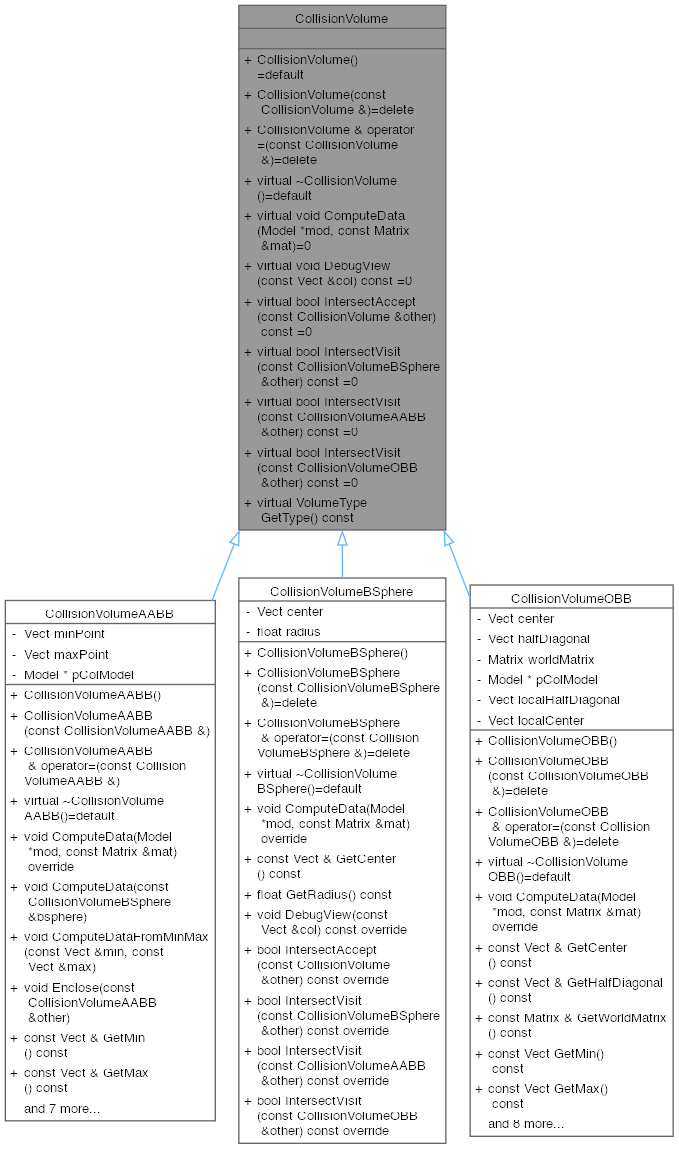

Inheritance diagram for CollisionVolume:

Public Member Functions
	CollisionVolume (const CollisionVolume &)=delete
CollisionVolume &	operator= (const CollisionVolume &)=delete
virtual void	ComputeData (Model *mod, const Matrix &mat)=0
	Computes the collision data for the volume.
virtual void	DebugView (const Vect &col) const =0
virtual bool	IntersectAccept (const CollisionVolume &other) const =0
virtual bool	IntersectVisit (const CollisionVolumeBSphere &other) const =0
virtual bool	IntersectVisit (const CollisionVolumeAABB &other) const =0
virtual bool	IntersectVisit (const CollisionVolumeOBB &other) const =0
virtual VolumeType	GetType () const

Detailed Description

Base class for collision volumes.

The CollisionVolume class serves as the base class for different types of collision volumes. It provides pure virtual methods for computing collision data and checking intersections that must be implemented by derived classes.

Member Function Documentation

ComputeData()

virtual void CollisionVolume::ComputeData ( Model * mod, const Matrix & mat )

pure virtual

Computes the collision data for the volume.

Parameters

mod	Pointer to the model.
mat	The transformation matrix.

Implemented in CollisionVolumeAABB, CollisionVolumeBSphere, and CollisionVolumeOBB.

DebugView()

virtual void CollisionVolume::DebugView ( const Vect & col ) const

pure virtual

Implemented in CollisionVolumeAABB, and CollisionVolumeOBB.

GetType()

virtual VolumeType CollisionVolume::GetType ( ) const

inlinevirtual

Reimplemented in CollisionVolumeAABB, and CollisionVolumeOBB.

IntersectAccept()

virtual bool CollisionVolume::IntersectAccept ( const CollisionVolume & other ) const

pure virtual

Implemented in CollisionVolumeAABB, and CollisionVolumeOBB.

IntersectVisit() [1/3]

virtual bool CollisionVolume::IntersectVisit ( const CollisionVolumeAABB & other ) const

pure virtual

Implemented in CollisionVolumeAABB, and CollisionVolumeOBB.

IntersectVisit() [2/3]

virtual bool CollisionVolume::IntersectVisit ( const CollisionVolumeBSphere & other ) const

pure virtual

Implemented in CollisionVolumeAABB, and CollisionVolumeOBB.

IntersectVisit() [3/3]

virtual bool CollisionVolume::IntersectVisit ( const CollisionVolumeOBB & other ) const

pure virtual

Implemented in CollisionVolumeAABB, and CollisionVolumeOBB.

---

The documentation for this class was generated from the following file:

• CollisionVolume.h
