Alarmable Class Reference

Base class for objects that can have alarms triggered in the game loop. More...

#include <Alarmable.h>

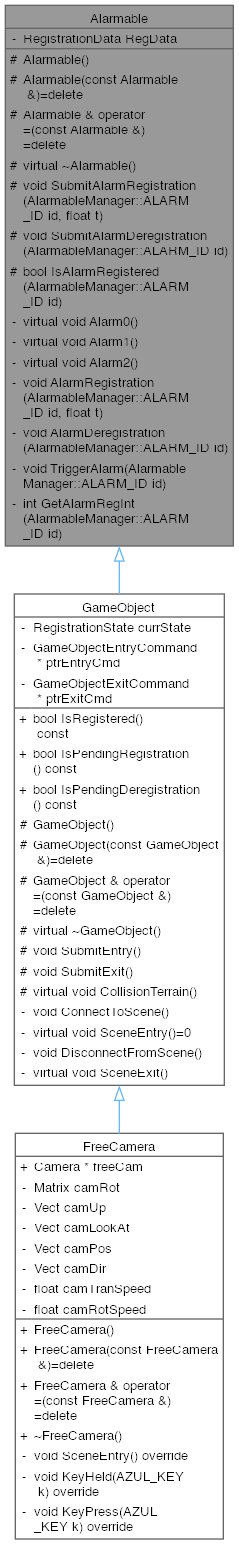

Inheritance diagram for Alarmable:

Classes
struct	RegistrationData
	Structure to hold registration data for alarms. More...

Protected Member Functions
	Alarmable (const Alarmable &)=delete
Alarmable &	operator= (const Alarmable &)=delete
void	SubmitAlarmRegistration (AlarmableManager::ALARM_ID id, float t)
	Submits the alarm registration for the GameObject.
void	SubmitAlarmDeregistration (AlarmableManager::ALARM_ID id)
	Submits the alarm deregistration for the GameObject.
bool	IsAlarmRegistered (AlarmableManager::ALARM_ID id)
	Checks if the given alarm is currently registered.

Private Member Functions
virtual void	Alarm0 ()
	Virtual method to be implemented by derived classes for alarm 0 when triggered.
virtual void	Alarm1 ()
	Virtual method to be implemented by derived classes for alarm 1 when triggered.
virtual void	Alarm2 ()
	Virtual method to be implemented by derived classes for alarm 2 when triggered.
void	AlarmRegistration (AlarmableManager::ALARM_ID id, float t)
	Registers the GameObject for alarms in the scene.
void	AlarmDeregistration (AlarmableManager::ALARM_ID id)
	Deregisters the GameObject from alarms in the scene.
void	TriggerAlarm (AlarmableManager::ALARM_ID id)
	Triggers the alarm for the GameObject.
int	GetAlarmRegInt (AlarmableManager::ALARM_ID id)
	Gets the integer representation of the alarm registration state.

Private Attributes
RegistrationData	RegData [AlarmableManager::ALARM_NUMBER]
	Array to hold registration data for all alarms.

Friends
class	AlarmableAttorney

Detailed Description

Base class for objects that can have alarms triggered in the game loop.

The Alarmable class provides a base implementation for objects that need to have alarms triggered during the game loop. It manages registration and deregistration with the AlarmableManager and provides virtual alarm methods that can be overridden by derived classes.

Member Function Documentation

AlarmDeregistration()

void Alarmable::AlarmDeregistration ( AlarmableManager::ALARM_ID id )

private

Deregisters the GameObject from alarms in the scene.

Parameters

id	The alarm ID to deregister.

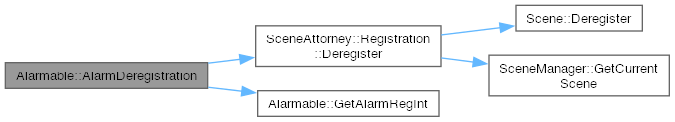

Here is the call graph for this function:

Here is the caller graph for this function:

AlarmRegistration()

void Alarmable::AlarmRegistration ( AlarmableManager::ALARM_ID id, float t )

private

Registers the GameObject for alarms in the scene.

Parameters

id	The alarm ID to register.
t	The time duration for the alarm.

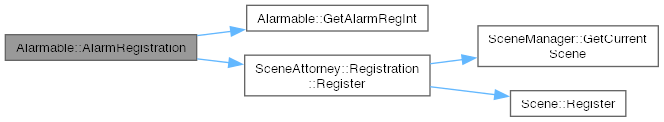

Here is the call graph for this function:

Here is the caller graph for this function:

GetAlarmRegInt()

int Alarmable::GetAlarmRegInt ( AlarmableManager::ALARM_ID id )

private

Gets the integer representation of the alarm registration state.

Parameters

id	The alarm ID.

Returns

The integer representation of the alarm registration state.

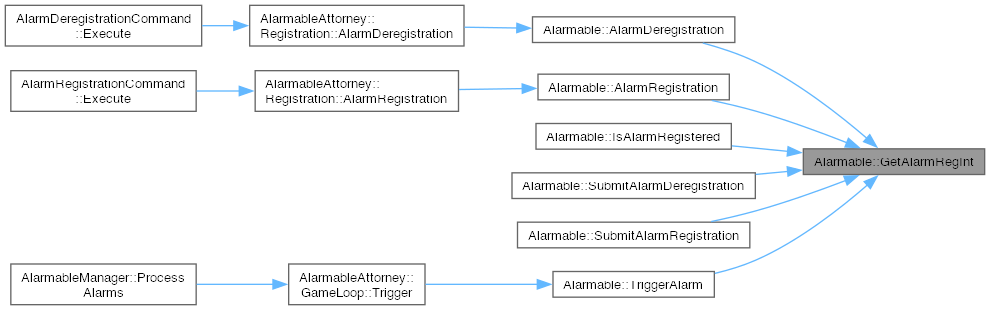

Here is the caller graph for this function:

IsAlarmRegistered()

bool Alarmable::IsAlarmRegistered ( AlarmableManager::ALARM_ID id )

protected

Checks if the given alarm is currently registered.

Parameters

id	The alarm ID to check.

Returns

True if the alarm is currently registered, false otherwise.

Here is the call graph for this function:

SubmitAlarmDeregistration()

void Alarmable::SubmitAlarmDeregistration ( AlarmableManager::ALARM_ID id )

protected

Submits the alarm deregistration for the GameObject.

Parameters

id	The alarm ID to deregister.

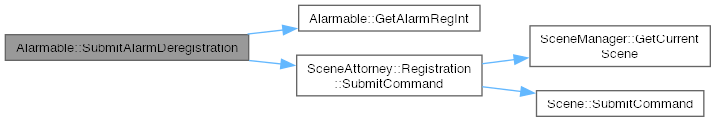

Here is the call graph for this function:

SubmitAlarmRegistration()

void Alarmable::SubmitAlarmRegistration ( AlarmableManager::ALARM_ID id, float t )

protected

Submits the alarm registration for the GameObject.

Parameters

id	The alarm ID to register.
t	The time duration for the alarm.

Here is the call graph for this function:

TriggerAlarm()

void Alarmable::TriggerAlarm ( AlarmableManager::ALARM_ID id )

private

Triggers the alarm for the GameObject.

Parameters

id	The alarm ID to trigger.

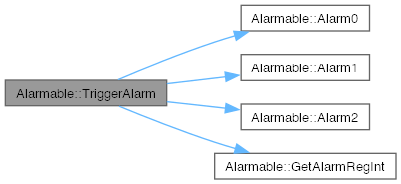

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• Alarmable.h
• Alarmable.cpp
