Collidable Class Reference

Base class for objects that can participate in collision detection. More...

#include <Collidable.h>

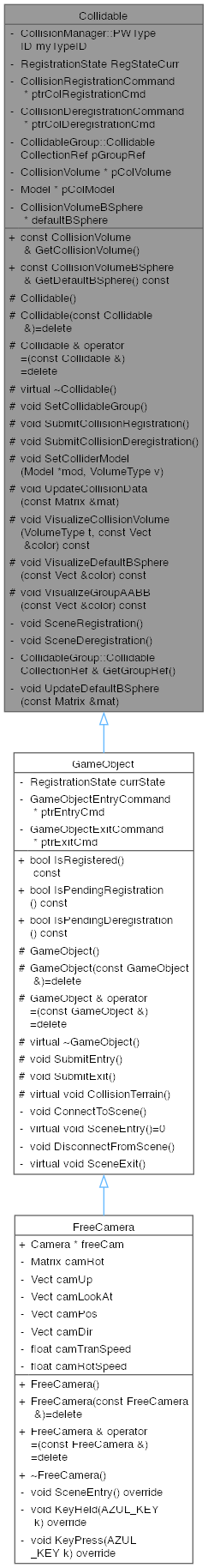

Inheritance diagram for Collidable:

Public Member Functions
const CollisionVolume &	GetCollisionVolume ()
	Gets the collision volume bounding sphere.
const CollisionVolumeBSphere &	GetDefaultBSphere () const
	Gets the collision volume bounding sphere.

Protected Member Functions
	Collidable (const Collidable &)=delete
Collidable &	operator= (const Collidable &)=delete
template<typename C>
void	SetCollidableGroup ()
	Sets the collidable group for the object.
void	SubmitCollisionRegistration ()
	Submits the collision registration for the GameObject.
void	SubmitCollisionDeregistration ()
	Submits the collision deregistration for the GameObject.
void	SetColliderModel (Model *mod, VolumeType v)
	Sets the collider model for the GameObject.
void	UpdateCollisionData (const Matrix &mat)
	Updates the collision data for the GameObject.
void	VisualizeCollisionVolume (VolumeType t, const Vect &color) const
	Sets the color of the bounding sphere for visualization.
void	VisualizeDefaultBSphere (const Vect &color) const
	Sets the default bounding sphere color for the collidable object.
void	VisualizeGroupAABB (const Vect &color) const
	Displays the group AABB for debugging purposes.

Private Member Functions
void	SceneRegistration ()
	Registers the GameObject for collisions in the scene.
void	SceneDeregistration ()
	Deregisters the GameObject from collisions in the scene.
CollidableGroup::CollidableCollectionRef &	GetGroupRef ()
	Gets the group reference for the GameObject.
void	UpdateDefaultBSphere (const Matrix &mat)
	Updates the default bounding sphere for the collidable object.

Private Attributes
CollisionManager::PWTypeID	myTypeID = CollisionManager::PWID_UNDEFINED
	The type ID of the collidable group.
RegistrationState	RegStateCurr
	The current registration state of the GameObject.
CollisionRegistrationCommand *	ptrColRegistrationCmd
	Pointer to the collision registration command for the GameObject.
CollisionDeregistrationCommand *	ptrColDeregistrationCmd
	Pointer to the collision deregistration command for the GameObject.
CollidableGroup::CollidableCollectionRef	pGroupRef
	Reference to the collidable group collection iterator.
CollisionVolume *	pColVolume
	Pointer to the collision volume for the GameObject.
Model *	pColModel
	Pointer to the collider model.
CollisionVolumeBSphere *	defaultBSphere
	Default bounding sphere for the collidable object.

Friends
class	CollidableAttorney

Detailed Description

Base class for objects that can participate in collision detection.

The Collidable class provides a base implementation for objects that need to participate in collision detection. It manages registration and deregistration with the CollisionManager and provides methods to set the collider model and update collision data.

Member Function Documentation

GetCollisionVolume()

const CollisionVolume & Collidable::GetCollisionVolume

(

)

Gets the collision volume bounding sphere.

Returns

The collision volume bounding sphere.

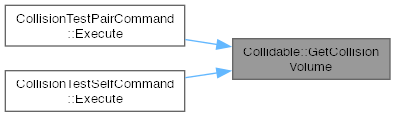

Here is the caller graph for this function:

GetDefaultBSphere()

const CollisionVolumeBSphere & Collidable::GetDefaultBSphere

(

)

const

Gets the collision volume bounding sphere.

Returns

The collision volume bounding sphere.

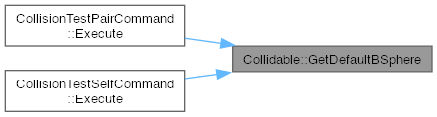

Here is the caller graph for this function:

GetGroupRef()

CollidableGroup::CollidableCollectionRef & Collidable::GetGroupRef ( )

private

Gets the group reference for the GameObject.

Returns

Reference to the collidable group collection iterator.

SetCollidableGroup()

template<typename C>

void Collidable::SetCollidableGroup ( )

inlineprotected

Sets the collidable group for the object.

Template Parameters

C	The type of the collidable group.

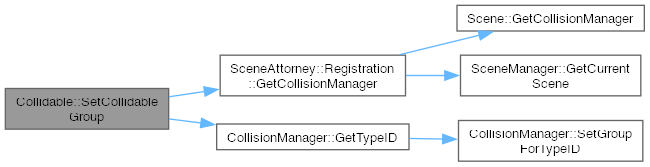

Here is the call graph for this function:

SetColliderModel()

void Collidable::SetColliderModel ( Model * mod, VolumeType v )

protected

Sets the collider model for the GameObject.

Parameters

mod	Pointer to the model.

Here is the call graph for this function:

UpdateCollisionData()

void Collidable::UpdateCollisionData ( const Matrix & mat )

protected

Updates the collision data for the GameObject.

Parameters

mat	The transformation matrix.

Here is the call graph for this function:

UpdateDefaultBSphere()

void Collidable::UpdateDefaultBSphere ( const Matrix & mat )

private

Updates the default bounding sphere for the collidable object.

Parameters

mat	The transformation matrix.

Here is the caller graph for this function:

VisualizeCollisionVolume()

void Collidable::VisualizeCollisionVolume ( VolumeType t, const Vect & color ) const

protected

Sets the color of the bounding sphere for visualization.

Parameters

col	The color to set.

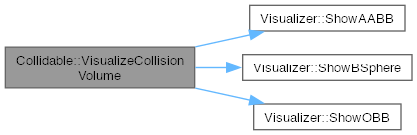

Here is the call graph for this function:

VisualizeDefaultBSphere()

void Collidable::VisualizeDefaultBSphere ( const Vect & color ) const

protected

Sets the default bounding sphere color for the collidable object.

Parameters

col	The color to set.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• Collidable.h
• Collidable.cpp
