VisualizerOBBCommand Class Reference

Command class for visualizing an OBB (Oriented Bounding Box) in the scene. More...

#include <VisualizerOBBCommand.h>

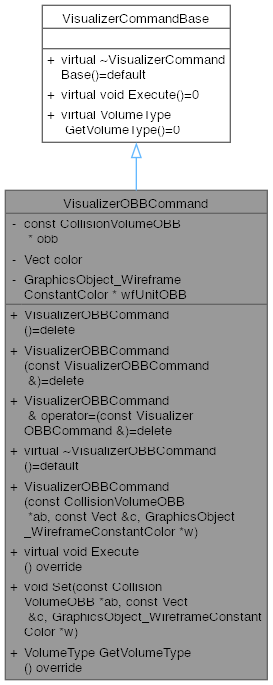

Inheritance diagram for VisualizerOBBCommand:

Public Member Functions
	VisualizerOBBCommand (const VisualizerOBBCommand &)=delete
VisualizerOBBCommand &	operator= (const VisualizerOBBCommand &)=delete
	VisualizerOBBCommand (const CollisionVolumeOBB *ab, const Vect &c, GraphicsObject_WireframeConstantColor *w)
	Constructor for VisualizerOBBCommand.
virtual void	Execute () override
	Executes the OBB visualization command (renders the OBB).
void	Set (const CollisionVolumeOBB *ab, const Vect &c, GraphicsObject_WireframeConstantColor *w)
	Sets the OBB and color for visualization.
VolumeType	GetVolumeType () override
	Gets the volume type associated with this command.
Public Member Functions inherited from VisualizerCommandBase
virtual	~VisualizerCommandBase ()=default
	Virtual destructor for VisualizerCommandBase.

Private Attributes
const CollisionVolumeOBB *	obb
	Pointer to the CollisionVolumeOBB object to visualize.
Vect	color
	Color of the OBB.
GraphicsObject_WireframeConstantColor *	wfUnitOBB
	Pointer to the GraphicsObject_WireframeConstantColor for rendering.

Detailed Description

Command class for visualizing an OBB (Oriented Bounding Box) in the scene.

The VisualizerOBBCommand class is responsible for rendering an OBB using a wireframe representation. It inherits from VisualizerCommandBase and implements the Execute method to perform the rendering.

Example usage:

CollisionVolumeOBB* obb = new CollisionVolumeOBB(...);
Vect color(1.0f, 0.0f, 0.0f);
GraphicsObject_WireframeConstantColor* wf = new GraphicsObject_WireframeConstantColor(...);
VisualizerOBBCommand* command = new VisualizerOBBCommand(obb, color, wf);
command->Execute();

Constructor & Destructor Documentation

VisualizerOBBCommand()

VisualizerOBBCommand::VisualizerOBBCommand	(	const CollisionVolumeOBB *	ab,
		const Vect &	c,
		GraphicsObject_WireframeConstantColor *	w )

Constructor for VisualizerOBBCommand.

Parameters

ab	Pointer to the CollisionVolumeOBB object to visualize.
c	Color of the OBB.
w	Pointer to the GraphicsObject_WireframeConstantColor for rendering.

Member Function Documentation

Execute()

void VisualizerOBBCommand::Execute ( )

overridevirtual

Executes the OBB visualization command (renders the OBB).

Implements VisualizerCommandBase.

Here is the call graph for this function:

GetVolumeType()

VolumeType VisualizerOBBCommand::GetVolumeType ( )

overridevirtual

Gets the volume type associated with this command.

Returns

The VolumeType for this visualizer command.

Implements VisualizerCommandBase.

Set()

void VisualizerOBBCommand::Set	(	const CollisionVolumeOBB *	ab,
		const Vect &	c,
		GraphicsObject_WireframeConstantColor *	w )

Sets the OBB and color for visualization.

Parameters

ab	Pointer to the CollisionVolumeOBB object to visualize.
c	Color of the OBB.
w	Pointer to the GraphicsObject_WireframeConstantColor for rendering.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• VisualizerOBBCommand.h
• VisualizerOBBCommand.cpp
